Inputs: BNC connector, Direct wire connection with amplified probe (supports HI 1006 series probes) and 4-20 mA from a transmitter
Extended temperature compensation range: -20 to 100°C
Supports potential matching pin connection
Both 4-20 and 0-20 mA analog output
±5V outputs for amplified electrodes
Backlit LCD
Auto-diagnostic tests for pH electrode and instrument status
Operational mode LED indicators
Designed for easy panel mount installation
Transparent splash-proof cover included
HI 8510 is ideal for monitoring pH in process control. It can provide highly accurate pH measurements and display values on the easy to read LCD. BNC input, amplified probe input and input from transmitter are supported.
Designed for easy and fast installation, the HI 8510 is provided with membrane keypads on the front panel, large display, and auto-diagnostic functions to check pH electrode and instrument status. These instruments also provide ±5V power output and input terminals for amplified electrodes.
The front panel is protected behind a transparent splash-proof cover.

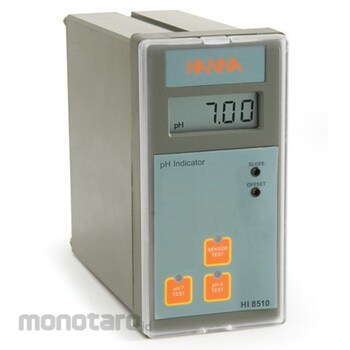

Hanna Instruments pH Analog Indicator with Self Diagnostic Test
#Grup produk P107657929
Spesifikasi
| Solutions | HI 7004/1L 4.01 pH Buffer Solution 1 x 1 L bottle; HI 7007/1L 7.01 pH Buffer Solution 1 x 1 L bottle; HI 7010/1L 10.01 pH Buffer Solution 1 x 1 L bottle |
|---|---|
| Power Output (V) | ±5; 150mA max load for amplified electrodes |
| Panel Cut Out (mm) | 141x69 (5.6x2.7inch) |
| Input | high impedance 1012 Ohm; reference and matching pin inputs are available; 4-20 mA |
| Enclosure | Flame retardant ABS body and front panel;;transparent splash-proof front cover |
| Recorder Output (mA) | 0-20 or 4-20 (isolated) |
| Backlight | Continuous ON |
| Calibration | offset: ±2 pH with OFFSET trimmer;slope: 80 to 110% with SLOPE trimmer |
| Power Supply (V) | 115AC ±10% or 230AC ±10%; 50/60 Hz |
| Resolution (pH) | 0.01 |
| Temperature Compensation | Fixed or automatic with Pt100, from -20 to 100°C (-4 to 212°F) |
| pH Accuracy at 20°C | ±0.02 (0 to 100 °C);±0.05 (-20 to 0 °C);±0.5% (input transmitter) |
