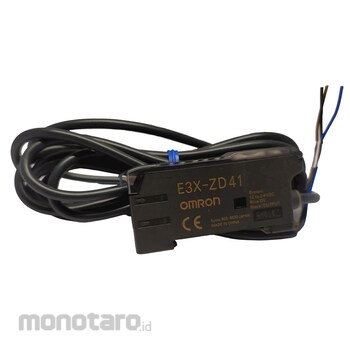

OMRON Digital Optical Fiber Sensor
#Grup produk P107651837
Spesifikasi
| Connections | Pre-wired models |
|---|---|
| Light Source (Emitted Wavelength) (nm) | 620 (Red AIGALNN LED) |
| Control Output | Open collector output (NPN or PNP) Load current 50mA max. (Residual voltage 1.5V max.) L-ON and D-ON pushbutton switch |
| Ambient Humidity (%RH) | Operation and storage: 35 to 85 (with no condensation) |
| Ambient Temperature (°C) | Operation: Group of 1 to 3 Amplifiers: -25 to +55℃ (with no condensation) Group of 4 to 11 Amplifiers: -25 to +50℃ (with no condensation) Group of 12 to 16 Amplifiers: -25 to +45℃ (with no condensation) Storage: -30 to +70℃(with no condensation) |
| Ambient illumination (lx) | Incandescent lamp: 10,000 max., Sunlight: 20,000 max. |
| Degree of Protection | IEC60529 IP50 (with the protective cover) |
| Digital Display | Light Power/Threshold 0 to 9999 |
| Indicator (Orange) | L-ON/D-ON indicator, Teach mode indicator, Operation mode indicator |
| Insulation Resistance (MΩ) | 20 minimum (DC500V) |
| Material | Case: Polybutylene phthalate (PBT) Cover: Polycarbonate (PC) |
| Model | PNP Output |
| Mutual Interference Prevention | Light parallel (5 sets) (Please place the amplifiers as close as possible to each other for the mutual interference function.) |
| Power Consumption (mW) | (Current Consumption) 960 max. (supply voltage 24V with current consumption 40mA max.) |
| Power Supply Voltage (V) | DC12 to 24±10% Ripple (P-P) 10% max. |
| Protection circuit | Power reverse protect, output short-circuit protection, reverse output polarity protection |
| Response Time (μs) | Action, Reset: 200 maximum for each |
| Sensitivity Adjustment | Teaching (With or without workpiece/Automatic) or manual adjustment |
| Shock Resistance Destruction (m/s²) | 500 for 3 times each in X, Y, and Z directions |
| Vibration Resistance (Destruction) Frequency (Hz) | 10 to 55Hz, 1.5mm double amplitude for 2h each in X, Y, and Z directions |
