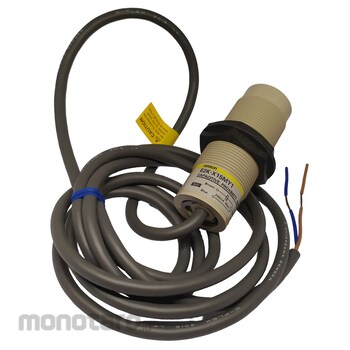

OMRON Cylindrical Proximity Sensor E2K-X Series
#Grup produk P107651794
Spesifikasi
| Sensing Head Size | M30 |
|---|---|
| Type | Cylinder type (with screw), Capacitive type, Unshielded |
| Power Source | AC 2-wire models |
| Differential Distance (%) | 4 to 20 of sensing distance |
| Accessories | Instruction manual |
| Action Mode | No |
| Ambient Humidity (% RH) | During use and storage: 35 to 95 (no condensation) |
| Ambient Temperature (°C) | During operation and storage: -10 to +55 each (no freezing or condensation) |
| Connection Method | Cord drawer type |
| Control Output (Switching Capacity) | 10 to 200 |
| Control Output (mA) | Opening/closing capacity: 10~200 |
| Cord Length (m) | 2 |
| Detection Distance (mm) | 15±10% |
| Detection Target | Conductor and Dielectrics |
| Effect of Temperature | ±20% or less of the sensing distance at +23℃ within the operating temperature range |
| Effect of Voltage | Within ±10% of the rated power supply voltage, within ±2% of the sensing distance at the rated power supply voltage |
| Head Shape | Screw |
| Hysteresis (%) | 4-20 of detection distance |
| Impact Durability (m/s²) | 500 3 times each in X, Y, and Z directions |
| Indicator | Operation indicator (red) |
| Indicator Light | Operation indicator (red) |
| Insulation Resistance (MΩ) | Between all the charging parts and the case: 50 or more (at DC500V megger) |
| Leakage Current (mA) | 2.2 max. |
| Material | Case: Heat-resistant ABS resin Sensing surface: Heat-resistant ABS resin Clamping nuts: Polyacetal |
| Operating Voltage Range (V AC) | 90 to 250 |
| Operation Mode | NO |
| Outer Diameter | M30 |
| Output | AC 2-wire system |
| Power Supply Voltage (VAC) | 100 to 220 |
| Protection Class | IEC standard IP66 |
| Protection circuit | surge absorptio |
| Protective Circuit | Surge Suppressor |
| Response Frequency (Hz) | 10 |
| Sensor Shape | Screw type |
| Setting Distance (mm) | 0 to 10 |
| Shield Shape | non-shielded |
| Standard Detection Object (mm) | With grounded metal 50x50x1 |
| Vibration Resistance (Durability) | 10~55Hz Multiple width 1.5mm 2h each in X, Y, Z directions |
| Withstand Voltage (V) | Between all live parts and case: AC2000 50/60Hz 1min |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Capacitive type, Unshielded, Cylinder type (with screw) M30, AC 2-wire models, Sensing distance 15 mm ±10%, NO, Pre-wired modelsUlasan Produk
