Eden is a non-contact safety sensor used as interlocking device for e.g. doors and safe position monitoring.

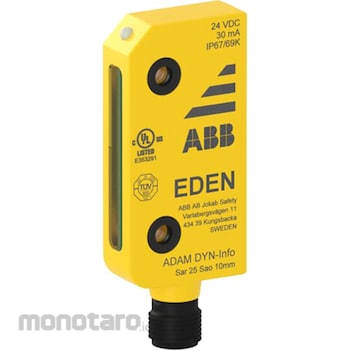

Adam safety sensor with DYNlink signal and information output. Used with an Eva actuator to form a non-contact safety sensor Eden. M12-5 male connector. Four pieces of DA 1B distance plates and four pieces of DA 2B distance rings are included.
Adam senses the presence of Eva without mechanical contact and therefore without any wear. The compact size of Eden and its 360°mounting possibility make it easy to use in most applications.
Eden is UL approved for use in US and Canada.
ABB Eden Safety Sensor
#Grup produk P107649522
Spesifikasi
| Degree of Protection | IP67, IP69K |
|---|---|
| Dimensions (LxHxW) (mm) | 12x75.2x30 |
| eClass | V11.0 : 27272402 |
| ETIM 6 | EC002544 - Magnetic proximity switch |
| ETIM 7 | EC002544 - Magnetic proximity switch |
| ETIM 8 | EC002544 - Magnetic proximity switch |
| Number of Outputs | - Non-Failsafe, Undelayed Contacts 0 - Non-Failsafe, Undelayed Semiconductors 1 |
| Object Classification Code | B |
| Operating Distance (Sn) (mm) | 15 |
| Performance Level (PL) | Up to e |
| Probability of Dangerous Failure (hour) | 4.5 10¯⁹ (PFDH) |
| Rated Control Supply Voltage (Us) (V) | 24 DC |
| Type | Adam DYN-Info M12-5 |
| UNSPSC | 39122221 |
