With this Toolmaker‘s Microscope you can measure dimensions and angles on small workpieces thanks to the optional analogue or digital micrometer heads and the built-in circular scale.
Further benefits of the TM Generation B include:
-Toolmakers microscopes well-suited for measuring dimensions and angles of features on small workpieces with the XY stage and rotating eyepiece scale.
-Compact design with recessed grips for better portability. The slim design makes this microscope ideal for use in areas with limited space.
-Powerful adjustable LED light sources for contour and surface illumination provide optimum lighting conditions for workpiece inspection.
-The TM Generation B is available with work stages of 50 x 50 mm or 100 x 50 mm.
-Transmitted illumination:
Light source: White LED
with green filter
Functions: Light intensity adjustable
-Surface illumination:
Light source: White LED
Functions: Light intensity adjustable

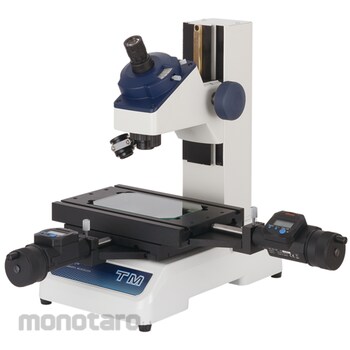

Mitutoyo Tool Maker Microscope
#Grup produk P107648620
Spesifikasi
| Observation Image | Erect |
|---|---|
| XY Stage Table Top Size (mm) | 240x152 |
| XY Stage Travel Range (mm) | 100x50 |
