-2D Data Processor designed to perform arithmetic processing of XY coordinate data acquired from projectors and measuring microscopes for local display or output to a printer.
-Informative color-graphic displays on the large LCD screen make for easy measurement operations.
-The AI measurement function (automatic identification of measuring item) eliminates switching between the measurement command keys.
-Equipped with a measurement procedure teaching function and measuring position navigation in Repeat mode.
-The user menu function allows users to register measurement commands or part programs to create their own menus.
-Measurement result output to CSV format in spreadsheet software.
-Measurement procedures and calculation results can be saved on a USB-compatible memory device.
Applicable models (Conventional models)*2 :
PJ-PLUS Series
PJ-H30 Series
PV-5110*3
PH-3515F*3
PH-A14*3
Input /Output :
XYZ : Data input from linear scales (Maximum number of axes: 3)
RS-232C 1 : Connection to an external PC
RS-232C 2 : Connection to a measuring unit counter
OPTOEYE : Connection to an OPTOEYE edge signal (OPTOEYE 200)
FS : For the connection to the foot switch
PRINTER : For the connection to an external printer
USB-MEMORY : For the connection to a USB memory

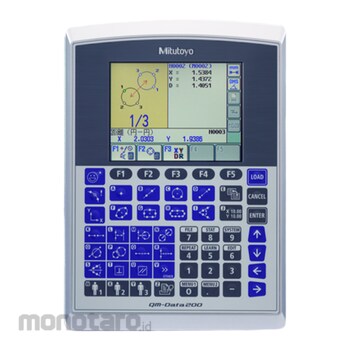

Mitutoyo QM Data 200 Arm Type
#Grup produk P107647348
Spesifikasi
| Unit of Measurement | (Length: mm) (Angle: Switchable Between Decimal Degree and Sexagesimal Notation) |
|---|---|
| Resolution (µm) | 0.1 |
| Program Function | Creating, Performing, and Editing of Measurement Procedures |
| Statistical Processing | Number Of Data, Maximum Value, Minimum Value, Mean Value, Standard Deviation, Range, Histogram, Statistics Classified By Each Measurement Function (Statistics Classified By Each Command) |
| Display unit | Color Graphic LCD (Equipped with LED Backlight) |
| Edge Sensor Position Correction | Available (Profile Projectors with OPTOEYE 200) |
| Display Language | 16 languages (Japanese, English, German, French, Italian, Spanish, Portuguese, Czech, Chinese (simplified / traditional), Korean, Turkish, Swedish, Polish, Dutch, Hungarian) |
| External Dimensions (W×H×D) (mm) | 318×153×275 (When the Arm is Horizontal) |
| Maximum Power Consumption (W) | 17 (Excluding Optional Accessories) |
| Measurement Result File Output | RS-232C Output (CSV Format, MUX-10 Format) |
| Power Supply (V) | AC100 to 240 |
| Standard Accessories | AC Adapter, Power Cable, Quick Operation Guide |
