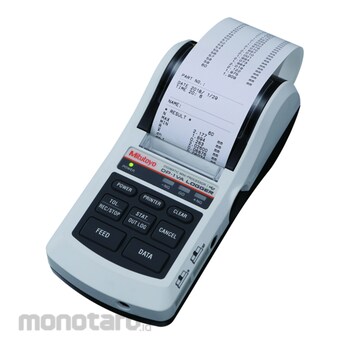

This DP-1VA printer allows you to print statistical evaluations a.s.o., and is so compact it fits right in the palm of your hand.
The DP-1VA offers the following benefits:
-Digimatic 2 Support
-8 digits output for data printing and analysis even from high resolution or long stroke instruments.
-Statistical evaluations, and data printout from calipers, micrometers and other measuring devices equipped with a Digimatic port.
-Excellent printing speed, prints upon one-touch start and at low noise level. The thermosensitive paper has outstanding durability andchemical resistance for long-term storage.
-Timer function for timed measurement data loading
-Easy data transfer from printer to PC. USB (VCP/HID) output for PC (USB IT-PAK Vers. 2.1 or later, MeasurLink, Excel a.s.o.)
-Data Logger FunctionSaves up to 1000 data records with time and date. Data can be saved even after the power is turned off.
-Printable data: Measurement data, GO/±NO GO judgement, number of data, maximum/minimum value, range, average, standard deviation, number of defective, fraction defective, process capability, index, histogram, D-chart, control chart, generation for Xd-bar and control limit data, date and time
-Processing capacity: Mode 0: 100,000 data entries Mode 1/2: 9,999 data entries Mode 3: sample size 10x subgroup 9,999 = total number of data entries 99,990
-Remarks : Digimatic Mini Processor DP-1VA
Mitutoyo Statistic Processing Printer
#Grup produk P107645243
Spesifikasi
| Data Output | USB, RS-232C at TTL Level, Tolerance Judgment Result (-NG, GO, +NG) |
|---|---|
| Power Supply | AC Adapter 6V |
| Battery | LR6 x 4 (Alkaline) or AA x 4 Ni-MH (Rechargeable, Battery is Not Charged in the Device) |
| Battery Life | Appr. 10000 Lines (With 1600 mA Ni-MH and Print 1 Time/5 s) |
| Data Input | Digimatic, Digimatic 2, RS-232C Input (KA-Counter Only) |
| Printer type | Thermal Line Printer |
| Logging of the Measurement Data (To Store) | Max. 1000 Points |
| Printer Line Number | 7.000 Lines/Roll (With Large Font) 10.000 Lines/Roll (With Normal Font) |
| Printer Paper (mmxm) | 58 (Width), 48 (length) |
| Printing Speed (mm/s) | 6.5 (Using AC Adapter) |
| Timer Function | 0.25 s; 1 s; 5 s; 30 s; 1 min; 30 min; 60 min (0.25 s Only Statistical Function) |
