Control mode_x000D_
Electric stroke controller,accept external control signal, adjust stroke length_x000D_
- Power supply: 220V-50Hz-single phase_x000D_
- Input signal: 4-20mA analog signal_x000D_
- Output signal: 4-20mA/1~5V analog signal,for records shown and control system usage_x000D_
_x000D_
Variable frequency controller,accept external control signal,adjust stroke speed_x000D_
- Power supply: 220V-50Hz-single phase/380-50Hz-th ree phase_x000D_
- Input signal: 4-20mA analog signal_x000D_
_x000D_
Motor controller,control three phase motor with mode "run/stop",adjust output flow_x000D_
- Power supply: 200~240V-50/60Hz-single phase_x000D_
- Control mode: can accept 4-20mA analog signal,external pulse signal or manual adjustment_x000D_
_x000D_
Accessory_x000D_
Provide system required accessories as: Filter,Adjusting pillar,Buffer,Safety valve and Back pressure valve etc.,Safety valve is mandatory. (GM0002-GM0050 range and pump with PVC/PVDF pump head,along with the dosing pump to provide injection valve, foot valve,counter weight and 6 meters tube,except the high viscosity pump head)_x000D_
_x000D_
Standard configuration motor performance parameters_x000D_
Power supply: 380V-50Hz-three phase/220V-50Hz-single phase_x000D_
Protection grade:IP55_x000D_
Insulation class: F_x000D_
Explosion-proof motor,60Hz motor can be chosen.AII the motors accord with international electrical association IEC_x000D_
standard or US electrical committee NEC standards

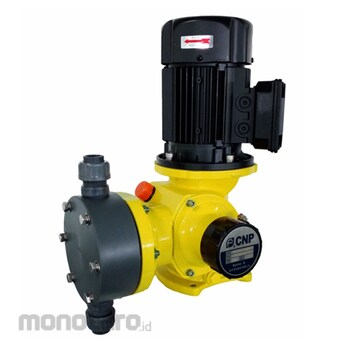

CNP Metering Dosing Pump GB Series Single Phase
#Grup produk P107643485
Sebelum PPN:
Rp30.999.900 - Rp199.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Number of Phase | Single Phase |
|---|---|
| Casing Material | PVC |
| Rated Motor Power (kW) | 0.75 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image on this page only as Representative Image, Please check the specifications of each model number for detailsFeature
Hydraulic end_x000D_- Disphram is mechannically driven, no diaphragm protecting plate at the material side,ripe for material getting through_x000D_
- Many kind of pump head material like PVC.PVDF,SS316,high viscosity,sizing agent,fit for all kinds of materials_x000D_
- Self-cleaning one-way valve structure_x000D_
_x000D_
Driving end_x000D_
- Variable eccentric institutions regulation, insure flow pulsation gently vary_x000D_
- Enhanced structure design, suitable for tough operation environment_x000D_
- Wear-resisting ball bearings, running is more stable_x000D_
- Oil bath lubrication, driving components have long working life_x000D_
- Flow regulation in downtime or running state, adjustment mode can be selected manually, motor driven or frequency conversion.
Use
Major Applications - Municipal,industrial water and waste water,swimming pool etc. all kinds of water treatment process. Options - Two diaphragm pump heads Two diaphragm pump heads, broken pressure gauge detection and pressure switch detection - Stroke count sensor PNP output/NPN output/Relay outputProduk Terpopuler
