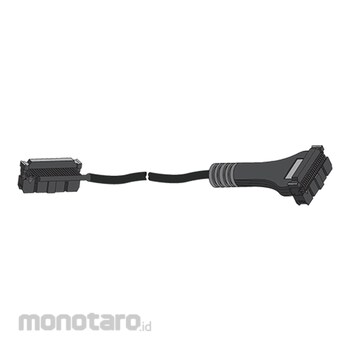

Autonics Closed Loop System Accessories
#Grup produk P107640080
Kondisi Barang:
Authorized Partner
Spesifikasi
| Applicable Cable | UL 20276 TWIST 20C/40C/50C |
|---|---|
| Cable Diameter (mm) | Ø7.2 (40C)/8.9 (50C) |
| Conductor Characteristics (mm) | 7/0.127 (AWG 28)x20P, 7/0.127 (AWG 28)x10P, 7/0.127 (AWG28)x25P |
| Conductor Resistance (ohm/m) | Max. 0.223 |
| Connector for PLC | HIF3BA-20D-2.54R, HIF3BA-40D-2.54R, HIF3BA-50D-2.54R, D-SUB 37P/S, FCN-367J040-AU/F, MDR102 SERIES(20/50pin) |
| Connector for Terminal Block | HIF3BA-20D-2.54R, HIF3BA-40D-2.54R, HIF3BA-50D-2.54R, HIF3BB-50D-2.54R |
| Environment Ambient Humidity (%RH) | 35 to 85, storage: 35 to 85 |
| Environment Ambient Temperature (°C) | -15 to 55, storage: -25 to 65 |
| Insulation Diameter (mm²) | 0.12 |
| Insulation Resistance (MΩ/km) | Min. 15 |
| Insulation Voltage (V/Hz) | 500 AC/(50/60) for 1 min. |
| Rated Current (A) | ≤1 |
