PushOne™ E Series
PushOne™ fittings for general air pressure (flame-resistant)

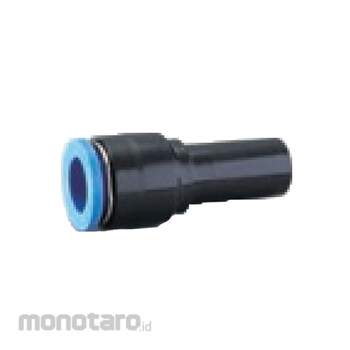

Nitta Moore Reducer
#Grup produk P107631170
Spesifikasi
| Applicable tubing outer diameter (mm) | 8 |
|---|---|
| D1 Insertion part diameter (mm) | 10 |
| Dimension L10 (mm) | 18.5 |
| F Tubing insertion length (mm) | 16 |
| Min. inner diameter (mm) | 7.0 |
| Dimension D (mm) | 14.6 |
| Dimension L (mm) | 39.0 |
| Effective Section Area (mm²) | 28 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- PushOne connection of tubingThe tubes can be connected without using a jig or tools.
- Electroless nickel plated
Prevents degradation of surface and dissolution of copper ions in fluid.
- Flame-resistant resin (compliant with V-0 of UL94 standard)
Made of flame-resistant resin PBT. High self-extinguishing performance is compliant
with V-0 of UL94 standard. Usable under an environment with spatters.
- Sealing-processed R thread
Sealing tape is not required.
