Control Series
Compact Speed Controller
PushOne™ Type
Nitta Moore Compact Speed Controller
#Grup produk P107631000

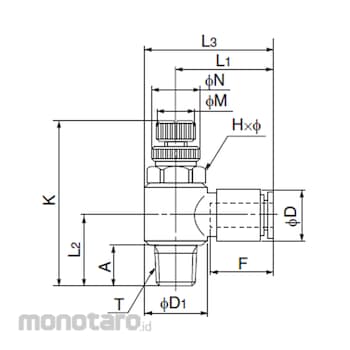

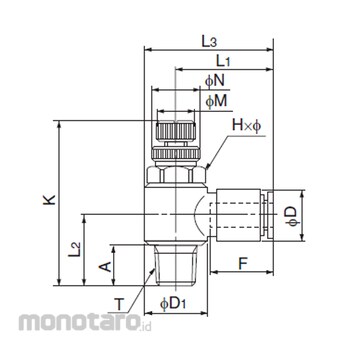

Spesifikasi
| Applicable tubing outer diameter (mm) | 6 |
|---|---|
| T Thread size (M,R) | R1/8 |
| K Full Open (mm) | 36.0 |
| K Full Closed (mm) | 31.0 |
| F Tubing insertion length (mm) | 15.0 |
| H×φ Width across flat (mm) | 12.0×13.5 |
| Dimension A (mm) | 7.3 |
| Dimension D (mm) | 12.6 |
| Dimension D1 (mm) | 14.2 |
| Dimension L1 | 21.8 |
| Dimension L2 (mm) | 13.7 |
| Dimension L3 (mm) | 28.9 |
| Dimension N (mm) | 11.0 |
| Dimensions m (mm) | 8.0 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Smaller than the conventional model- Easy fine adjustment at low flow rate
Compact size with a maximum flow rate comparable to that of the conventional model. (See the graph.)
- PushOne connection of tubing
Jig and tool not required for connecting the tubes.
- Flame-resistant resin
(compliant with V-0 of UL94 standard)
Made of flame-resistant resin PBT. High
self-extinguishing performance is compliant
with V-0 of UL94 standard. Usable under an
environment with spatters.
- Electroless nickel plated
Prevents degradation of surface and
dissolution of copper ions into fluid.
- Sealing-processed R thread
Sealing tape is not required.
