PushOne™ A Series
PushOne™ fittings for general air pressure (flame-resistant) ™

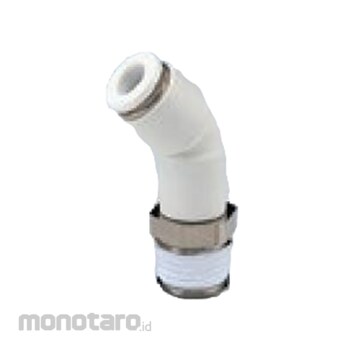

Nitta Moore 45 Degree Elbow
#Grup produk P107630904
Spesifikasi
| Applicable tubing outer diameter (mm) | 4 |
|---|---|
| T Thread size (M,R) | M5×0.8 |
| F Tubing insertion length (mm) | 13 |
| H×φ Width across flat (mm) | 10.0×11.0 |
| Min. inner diameter (mm) | 2.0 |
| Dimension A (mm) | 4 |
| Dimension D (mm) | 9.8 |
| Dimension D1 (mm) | 2 |
| Dimension L3 (mm) | 19.7 |
| Dimensions l4 (mm) | 34.4 |
| Effective Section Area (mm²) | 3 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- PushOne™ connection of tubingThe tubes can be connected without using a jig or tools.
- Electroless nickel plated
Prevents degradation of surface and dissolution of copper ions in fluid.
- White body illuminative to working environment
- Flame-resistant resin (compliant with V-0 of UL94 standard)
Made of flame-resistant resin PBT. High self-extinguishing performance is
compliant with V-0 of UL94 standard. Usable under an environment with
spatters.
- Sealing-processed R thread
Sealing tape is not required.
