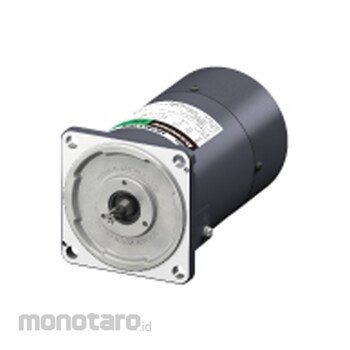

Orientalmotor Motor with Electromagnetic Brake 5IK40GV Series
#Grup produk P107607599
Spesifikasi
| Mounting Angle Dimension (mm) | 90 |
|---|---|
| Overheat Protector Type | Thermal protector |
| Electromagnetic Brake | Yes |
| Output Power (W) | 40 |
| Starting Torque (Motor Shaft) (mN.m) | Three-phase 200V/50Hz: 400; Three-phase 200V/60Hz: 260; Three-phase 220V/60Hz: 260; Three-phase 230V/60Hz: 260 |
| Rated Torque/Rated Speed (Motor Shaft) (mN.m/(rpm)) | Three-phase 200V/50Hz: 300/1300; Three-phase 200V/60Hz: 260/1550; Three-phase 220V/60Hz: 240/1600; Three-phase 230V/60Hz: 240/1600 |
| Direction of Rotation | It depends on the combined gearhead. |
| Electromagnetic Brake (V/Hz/A/W) | Single phase 200/50/0.04/6; Single phase 200/60/0.04/6; Single phase 220/60/0.04/6; Single phase 230/60/0.04/6; |
| Electromagnetic Brake Part Model | Non-excitation actuation type |
| Electromagnetic Brake Static Friction Torque (Motor Shaft) (mN.m) | 200 |
| Shaft/Gear Type | Toothed shaft |
| Time Rating | Continue |
| Type | Lead |
| Voltage/Frequency/Current (V/Hz/A) | Three-phase 200/50/0.32; Three-phase 200/60/0.30; Three-phase 220/60/0.28; Three-phase 230/60/0.29 |
