For combination with Symo cylinder removable core, for press fitting, mounting: Right hand
Installation reference
Please note that the pivot rods must be cut to the required size when designing the cabinet and choosing the accessories for the espagnolette lock.
With the existing internal cabinet height ⓒ and installing the espagnolette lock at half height, the upper rod dimension is ⓐ and the lower rod dimension is ⓑ. Housing centre ⓓ – 25 mm
Due to the three different backsets (15, 25 and 40 mm), identical gap sizes can be achieved for corner cabinets and rows of cabinets with the same drilling pattern.

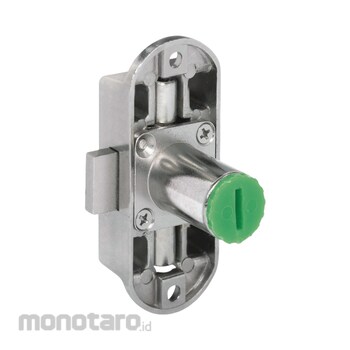

HAFELE Espagnolette Lock, Symo Piccolo-Nova
#Grup produk P107535274
Spesifikasi
| Material | Zinc alloy |
|---|---|
| Color/Finish | Nickel plated, Nickel plated |
| Installation | For screw fixing or press fitting |
| Backset D (mm) | 15 |
| Finish | Nickel plated |
| Area Of Application | For divided profile rod Ø 6 mm; for cylinder cores that are inserted from the front on site |
| Cylinder Housing Length (mm) | 22 |
| Mounting | Left hand or right hand |
| Refinement | Nickel plated |
| With Key | No |
