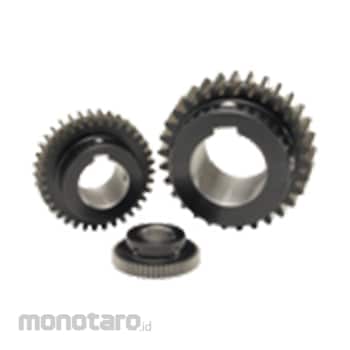

KHK Ground Spur Gear J Series (SSG5 Type)
#Grup produk P107512787
Sebelum PPN:
Rp4.699.900 - Rp8.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Gear accuracy | JIS N7 class |
|---|---|
| Grind Reference Plane | Hole (H7) |
| Shape | S1K |
| Accuracy class | JIS B 1702-1 N7 class |
| Face Width (mm) | 50 |
| Full Length (mm) | 75 |
| Gear Surface Treatment | grinding |
| Heat treatment | Tooth surface induction hardening |
| Hub Length F (mm) | 25 |
| Material | S45C |
| Overall Length G (mm) | 75 |
| Pressure Angle (°) | 20 |
| Specification | Alteration: Not possible |
| Surface Hardness | 50-60HRC |
| Surface Treatment | Blackening other than teeth |
| Tooth Surface Hardness | 50～60HRC |
| Tooth Type | Normal teeth |
| Tooth Width E (mm) | 50 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
