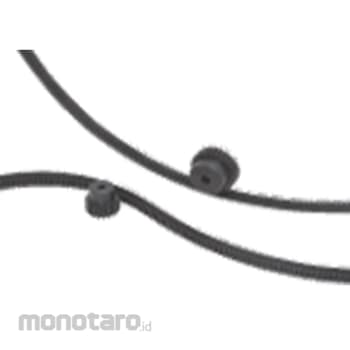

KHK CP Metal Flexible Rack
#Grup produk P107511803
Sebelum PPN:
Rp4.499.900 - Rp8.499.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Gear accuracy | KHK R 001 Grade 8 |
|---|---|
| Shape | R3 |
| Face Width (mm) | 10 |
| Tooth Finish | Cutting |
| Tooth Profile | Straight Teeth |
| Allowable Transmission Force (N m) | Bending strength 801 |
| Allowable Transmission Force (kgf.m) | Bending strength 81.7 |

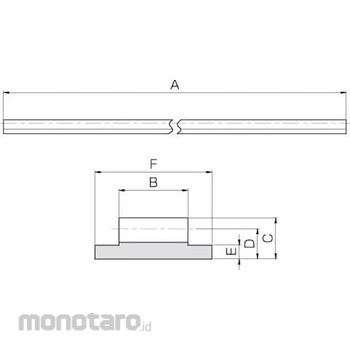

| Base Dimension (mm) | (Thickness E) 2 x (Width F) 17 |
| Cell Spacing (mm) | 5 |
| Gear Reference Surface | Bottom |
| Height (mm) | 6 |
| Material | SS400 |
| Meshing Height (mm) | 4.41 |
| Modules | 1.5915 |
| Pedestal Thickness (mm) | 2 |
| Pedestal Width (mm) | 17 |
| Pitch (module) | CP5 (1.5915) |
| Pitch Height D (mm) | 4.41 |
| Pressure Angle (°) | 20 |
| Surface Hardness | 187HB or less |
| Surface Treatment | Black dye |
| Tooth Width (mm) | 10 |
| Tooth width b (mm) | 10 |
