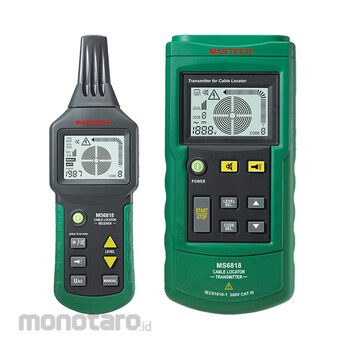

MASTECH Advanced Wire Tracker

- Find the Beaks or Shorts in Cable in the wall or Earth
- Track Cables in the wall or Earth
- Find the Fuse and Safeguard
- Find the Beaks or Shorts in Conduit under the Floor
- Sensitivity of Receiver can be selected
- Auto Ranging,
- Auto Power Off
- Backlight and Worklight

Technical Parameters of Transmitter
Output Signal : 125kHz
External Voltage : DC12~400V AC12~400V(50~60Hz) ±2.5%
Fuse : F0.5A 1000V
MIN Current : about 31mA
MAX Current : about 115mA
In Work : 0~40℃, with MAX relative humidity of 80%
In Storage : -20~60℃, with MAX relative humidity of 80%
Altitude : <2000m>

Technical Parameters of Receiver
Depth of Tracking : The Depth of Tracking Depends on the Material
and Specific Applications
Cable : Single pole application: about 0~2m
Locating : Dual pole application: about 0~0.5m
Mode : Single loop line: Up to 2.5m
MIN Current : about 32mA
MAX Current : about 89mA
In Work : 0~40℃, with MAX relative humidity of 80%
In Storage : -20~60℃, with MAX relative humidity of 80%
Altitude : <2000m>
