Secure remote connection between the lighting network and the cloud services
The Philips Building Connectivity Bridge (BCB) provides gateway services between the Wireless Gateway Pro
(WG-Pro) and the cloud, enabling secure online access to the Interact toolbox.
The BCB enables easy access to the online toolbox for commissioning and management of the complete lighting system.

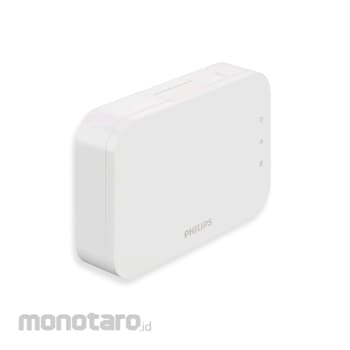

Philips Building Connectivity Bridge
#Grup produk P107507925
Spesifikasi
| Commercial Grade Regulated Power Supply | 12/24 VDC Class 2/SELV 0.5/0.25 A |
|---|---|
| Allowed Supply Ripple (Vpp) | Max. 0.5 |
| Communication Ports | 10/100BaseT Ethernet port |
| Supported Ethernet Protocols | IPv6, TCP, UDP |
| Relative Humidity Range | 0 to 90%, non-condensing |
| Ambient Temperature Range (°C) | 0 to 50 |
| Connector Type Ethernet | RJ45 |
| Connector Type Supply In | 1x 2 pole 5 mm (0.2 In) pluggable screw terminal (-,+) |
| Dimensions | 155 × 220 × 50 mm |
| Housing Color | Traffic White (RAL9016) |
| Housing Material | ABS |
| Material | Cardboard |
| Ordering Number | 913700396403 |
| Power Consumption (W) | Max. 6 |
| Relative Humidity Range Storage | 0 to 90%, non-condensing |
| Storage Temperature Range (°C) | -25 to 70 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
1 BCB per building3 LED indicators for feedback on connectivity
Wall mountable using screws and mounting plate
Supports up to 20 WG Pros and 5,000 wireless end points
Supports port security
Supports encrypted communication
Implements trusted device policy
Supports secure firmware upgrade from the cloud
Device implements secure firmware upgrade method
Has unique QR code for identification and commissioning
