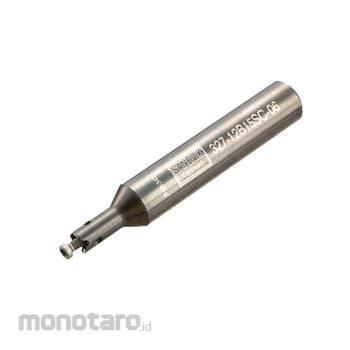

Sandvik Weldon to CoroMill 327 Adaptor
#Grup produk P107440143
Spesifikasi
| Body diameter (BD2) (mm) | 6 |
|---|---|
| Body length (LB2) (mm) | 17.232 |
| Body Half Taper Angle (BHTA2) (degree) | 30 |
| Coolant entry style code (CNSC) | 1: Axial Concentric Entry |
| Coolant exit style code (CXSC) | 1: Axial Concentric Exit |
| Coolant Pressure (CP) (bar) | 20 |
| Adaptive Interface Workpiece Direction (ADINTWS) | CoroMill 327 -Size 06 |
| Balanced by design (BBD) | False |
| Body diameter (BD1) (mm) | 6 |
| Body length (LB1) (mm) | 11.5 |
| Body material code (BMC) | Steel |
| Connection diameter (DCON) (mm) | 12 | 6 |
| Damping property (DPC) | False |
| Data chip provision (DCP) | False |
| Functional length (LF) (mm) | 70.5 |
| Maximum Rotation Speed (rpm) | 40000 |
| Standard letter (STDLET1) | WE |
| Standard number (STDNO1) | ISO3338-2 |
| Torque (N m) | 1.8 |
