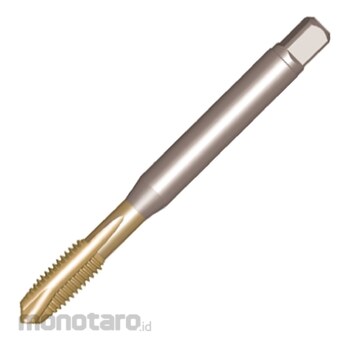

Sandvik CoroTap 200 Cutting Tap With Spiral Point DIN 374/ANSI
#Grup produk P107437705
Spesifikasi
| Coolant entry style code (CNSC) | 0: Without Coolant |
|---|---|
| Thread tolerance class (TCTR) | 6H |
| Coolant exit style code (CXSC) | 0: No Coolant Exit |
| Thread pitch (TP) (mm) | 1 |
| Neck diameter (DN) (mm) | 7.3 |
| Connection diameter (DCON) (mm) | 9.677 |
| Basic standard group (BSG) | DIN 374/ANSI |
| Blind Hole Function Property (BHFP) | False |
| Flute Count (NOF) | 3 |
| Functional length (LF) (mm) | 90 |
| Grade (GRADE) | C150 |
| Material classification level 1 (TMC1ISO) | PMKNS |
| Premachined Hole Diameter (PHD) (mm) | 9 |
| Substrate (SUBSTRATE) | HSS-PM |
| Thread Back Taper Property (THBTP) | True |
| Thread Diameter (TD) (mm) | 10 |
| Thread Diameter Size (TDZ) | MF 10x1 |
| Threading Chamfer Type (THCHT) | B |
| Threading Length (THL) (mm) | 18 |
| Usable length (LU) (mm) | 37.5 |
