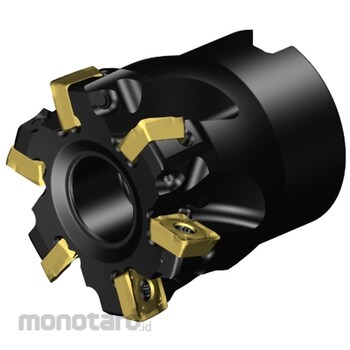

Sandvik CoroMill 490 Square Shoulder Milling Cutter
#Grup produk P107435637
Spesifikasi
| Coolant Pressure (CP) (bar) | 10 |
|---|---|
| Connection diameter (DCON) (mm) | 16 |
| Functional length (LF) (mm) | 40 |
| Cutting item count (CICTTOT) | 6 |
| Working Engagement Ratio Maximum (AERMXPFW) | 1 |
| Damping property (DPC) | False |
| Adaptive Interface Machine Direction (ADINTMS) | Arbor -ISO 6462 -A (Hexagon Socket Head Cap Screw) -Metric: 16 |
| Axial Rake Angle (GAMP) (degree) | 15 |
| Body material code (BMC) | Steel |
| Clamping type code (MTP) | S |
| Cutting diameter (DC) (mm) | 40 |
| Cutting item count (CICT) | 6 |
| Cutting pitch differential (CPDF) | False |
| Depth of cut maximum (APMX) (mm) | 5.5 |
| Maximum Rotation Speed (rpm) | 29300 |
| Part 2 of Cutting Item Interface Identifiers (CUTINTMASTER) | CoroMill 490 -Size 08 (490R-08T308..) |
| Radial Rake Angle (GAMF) (degree) | 19.9 |
| Standard letter (STDLET1) | A |
| Tool Cutting Edge Angle (KAPR) (degree) | 90 |
| Torque (N m) | 1.2 |
