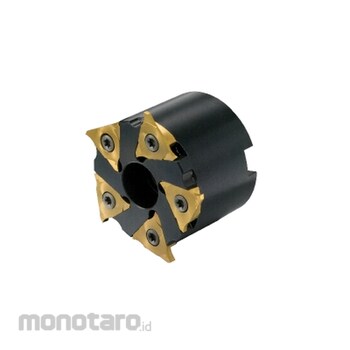

Sandvik CoroMill 328 Groove Milling Cutter
#Grup produk P107435372
Spesifikasi
| Coolant entry style code (CNSC) | 0: Without Coolant |
|---|---|
| Connection diameter (DCON) (mm) | 22 |
| Functional length (LF) (mm) | 40 |
| Body diameter (BD) (mm) | 51 |
| Body length (LB) (mm) | 40 |
| Adaptive Interface Machine Direction (ADINTMS) | Arbor -ISO 6462 -A (Hexagon Socket Head Cap Screw) -Metric: 22 |
| Clamping type code (MTP) | S |
| Cutting depth maximum (CDX) (mm) | 5 |
| Cutting diameter (DC) (mm) | 63 |
| Cutting item count (CICT) | 5 |
| Cutting width (CW) (mm) | 1.3 |
| Hand (HAND) | R |
| Hub diameter (DHUB) (mm) | 51 |
| Maximum Rotation Speed (rpm) | 11900 |
| Part 2 of Cutting Item Interface Identifiers (CUTINTMASTER) | CoroMill 328 -Size 13 (328R13) |
| Peripheral Effective Cutting Edge Count (ZEFP) | 5 |
| Standard letter (STDLET1) | A |
| Standard number (STDNO1) | ISO6462 |
| Torque (N m) | 6.5 |
