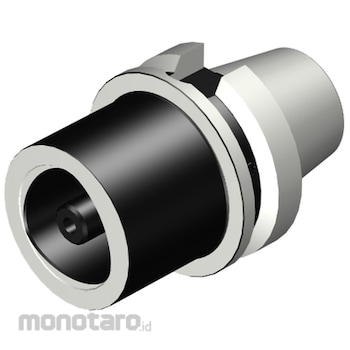

Sandvik MAS-BT short cone to Coromant Capto Adaptor
#Grup produk P107431367
Spesifikasi
| Coolant entry style code (CNSC) | 6: Decentral Over Flange |
|---|---|
| Coolant exit style code (CXSC) | 1: Axial Concentric Exit |
| Coolant Pressure (CP) (bar) | 150 |
| Connection diameter (DCON) (mm) | 80 |
| Functional length (LF) (mm) | 100 |
| Adaptive Interface Machine Direction (ADINTMS) | Short 7:24 Taper For Niigata: MAS-BT 403 Flange -B Flange Coolant: BT50 |
| Adaptive Interface Workpiece Direction (ADINTWS) | Coromant Capto (Bolt Clamping) -Size C8 |
| Balanced by design (BBD) | False |
| Body diameter (BD1) (mm) | 80 |
| Body diameter (BD2) (mm) | 100 |
| Body length (LB1) (mm) | 62 |
| Body length (LB2) (mm) | 100 |
| Body material code (BMC) | Steel |
| Damping property (DPC) | False |
| Data chip provision (DCP) | False |
| Functional diameter (DFC) (mm) | 55 | 69.85 |
| Torque (N m) | 170 |
