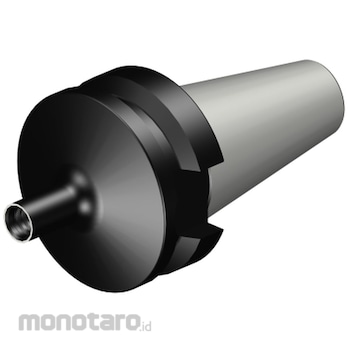

Sandvik MAS-BT 403 to Coromant EH Adaptor
#Grup produk P107431303
Spesifikasi
| Coolant entry style code (CNSC) | 1: Axial Concentric Entry |
|---|---|
| Adaptive Interface Workpiece Direction (ADINTWS) | Coromant EH -inch - E10 |
| Coolant Pressure (CP) (bar) | 80 |
| Connection diameter (DCON) (mm) | 9.15 |
| Functional length (LF) (mm) | 44 |
| Balanced by design (BBD) | True |
| Body Half Aper Angle (BHTA2) (°) | 75 |
| Body diameter (BD1) (mm) | 9.15 |
| Body diameter (BD2) (mm) | 9.15 |
| Body diameter (BD3) (mm) | 46 |
| Body length (LB1) (mm) | 13.2 |
| Body length (LB2) (mm) | 22 |
| Body length (LB3) (mm) | 44 |
| Body material code (BMC) | Steel |
| Connection Retention Knob Thread Size (CRKS) | M12 |
| Damping property (DPC) | False |
| Data chip provision (DCP) | False |
| Functional diameter (DFC) (mm) | 31.75 |
| Maximum Rotation Speed (rpm) | 25000 |
| Torque (N m) | 12 |
