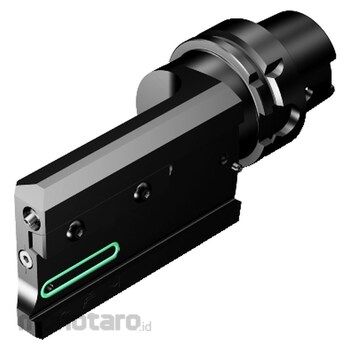

Sandvik HSK to Blade Adaptor
#Grup produk P107430623
Spesifikasi
| Coolant entry style code (CNSC) | 3: Axial Concentric and Radial Entry |
|---|---|
| Functional length (LF1) (mm) | 175 |
| Overall height (OAH) (mm) | 69 |
| Overall width (OAW) (mm) | 69 |
| Coolant exit style code (CXSC) | 6: Decentral Exit With Nozzles, Adjustable |
| Adaptive Interface Machine Direction (ADINTMS) | HSK -T -Size 63 |
| Body material code (BMC) | Steel |
| Connection diameter (DCON) (mm) | 63 |
| Coolant Pressure (CP) (bar) | 70 |
| Damping property (DPC) | False |
| Data chip provision (DCP) | True |
| Data chip provision size (DCPS) | D10/H4.5 |
| Functional height (HF1) (mm) | 25 |
| Functional width (WF1) (mm) | 32 |
| Maximum Tool Changer Interference Diameter (DIX) (mm) | 100 |
| Maximum overhang (OHX) (mm) | 175 |
| Radial body height (RADH) (mm) | 37 |
| Radial body width (RADW) (mm) | 37 |
| Torque (N m) | 10 |
