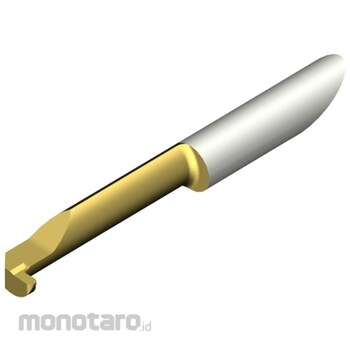

Sandvik CoroTurn XS Solid Carbide Tool For Profiling
#Grup produk P107429885
Spesifikasi
| Coolant entry style code (CNSC) | 0: Without Coolant |
|---|---|
| Cutting width upper tolerance (CWTOLU) (mm) | 0.05 |
| Connection diameter (DCON) (mm) | 7 |
| Functional length (LF) (mm) | 52.25 |
| Corner radius lower tolerance (RETOLL) (mm) | -0.02 |
| Corner radius upper tolerance (RETOLU) (mm) | 0.02 |
| Adaptive Interface Machine Direction (ADINTMS) | CoroTurn XS -Metric: 7 |
| Body width (WB) (mm) | 4.25 |
| Coating (COATING) | PVD TiAlN+TiN |
| Corner Radius (RE) (mm) | 0.75 |
| Cutting Width(CW) (mm) | 1.5 |
| Cutting depth maximum (CDX1) (mm) | 2.5 |
| Functional width (WF) (mm) | 3.45 |
| Grade (GRADE) | 1025 |
| Hand (HAND) | R |
| Material classification level 1 (TMC1ISO) | PMKNS |
| Maximum overhang (OHX) (mm) | 33 |
| Minimum bore diameter (DMIN1) (mm) | 7.2 |
| Substrate (SUBSTRATE) | HC |
| Usable length (LU) (mm) | 30 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
