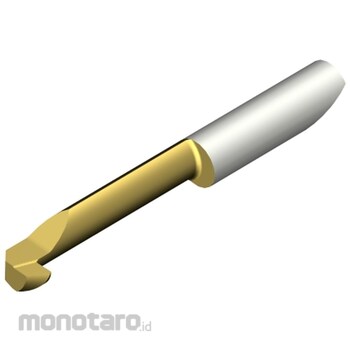

Sandvik CoroTurn XS Solid Carbide Tool For Back Boring
#Grup produk P107429821
Spesifikasi
| Coolant entry style code (CNSC) | 0: Without Coolant |
|---|---|
| Coolant exit style code (CXSC) | 0: No Coolant Exit |
| Connection diameter (DCON) (mm) | 7 |
| Functional length (LF) (mm) | 49.27 |
| Functional width (WF) (mm) | 3.45 |
| Body width (WB) (mm) | 4.3 |
| Body material code (BMC) | Carbide |
| Coating (COATING) | PVD TiAlN+TiN |
| Corner Radius (RE) (mm) | 0.2 |
| Depth of cut maximum (APMX) (mm) | 2.5 |
| Grade (GRADE) | 1025 |
| Material classification level 1 (TMC1ISO) | PMKNS |
| Maximum overhang (OHX) (mm) | 30.02 |
| Maximum ramping angle (RMPX) (°) | 27 |
| Minimum bore diameter (DMIN1) (mm) | 7.2 |
| Protruding length (LPR) (mm) | 52.25 |
| Substrate (SUBSTRATE) | HC |
| Tool cutting edge angle (KAPR) (°) | 92 |
| Tool lead angle (PSIR) (°) | -2 |
| Usable length (LU) (mm) | 27.5 |
