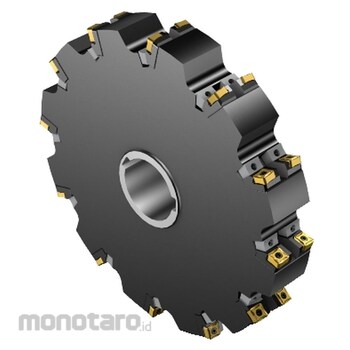

Sandvik CoroMill 331 Adjustable Double Half Side and Face Disc Milling Cutter
#Grup produk P107424923
Spesifikasi
| Coolant entry style code (CNSC) | 0: Without Coolant |
|---|---|
| Cutting item count (CICTTOT) | 40 |
| Connection diameter (DCON) (mm) | 60 |
| Drive count (DRVCT) | 2 |
| Functional length (LF) (mm) | 32.8 |
| Adaptive Interface Machine Direction (ADINTMS) | Arbor -ISO 240 -2 Key Drives -Metric: 60 |
| Clamping type code (MTP) | S |
| Cutting Depth Maximum (CDXBFW) (mm) | 114.5 |
| Cutting Width(CW) (mm) | 30.8 |
| Cutting diameter (DC) (mm) | 315 |
| Hub diameter (DHUB) (mm) | 84 |
| Hub thickness (THUB) (mm) | 34.8 |
| Maximum Rotation Speed (rpm) | 7600 |
| Maximum cutting width (CWX) (mm) | 33.8 |
| Minimum cutting width (CWN) (mm) | 30.8 |
| Minimum functional length (LFN) (mm) | 32.8 |
| Part 2 of Cutting Item Interface Identifiers (CUTINTMASTER) | CoroMill 331 -Size 11 (N/L331.1A-11RE0.20-1.54) |
| Peripheral Effective Cutting Edge Count (ZEFP) | 20 |
| Premachined slot width (PSW) (mm) | 10.6 |
| Torque (N m) | 3 |
