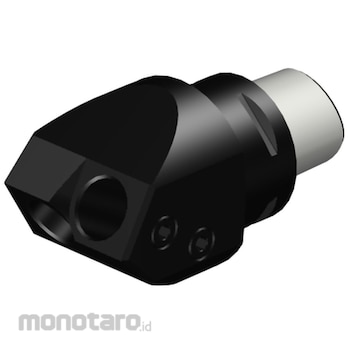

Sandvik Coromant Capto MiniTurret For Two Boring Bars
#Grup produk P107423544
Spesifikasi
| Coolant entry style code (CNSC) | 3: Axial Concentric and Radial Entry |
|---|---|
| Overall height (OAH) (mm) | 70.371 |
| Overall width (OAW) (mm) | 82 |
| Coolant exit style code (CXSC) | 1: Axial Concentric Exit |
| Coolant Pressure (CP) (bar) | 80 |
| Connection diameter (DCON) (mm) | 25 | 63 |
| Adaptive Interface Machine Direction (ADINTMS) | Coromant Capto (Bolt and Segment Clamping) -Size C6 |
| Adaptive Interface Workpiece Direction (ADINTWS) | Cylindrical Clamping (ISO9766 Drill Shank) -Metric: 25 |
| Body material code (BMC) | Steel |
| Data chip provision (DCP) | False |
| Functional diameter (DFC) (mm) | 44 |
| Functional height (HF) (mm) | 14 |
| Functional length (LF) (mm) | 95 |
| Functional width (WF) (mm) | 8 |
| Maximum Tool Changer Interference Diameter (DIX) (mm) | 82 |
| Protruding length (LPR) (mm) | 103.1 |
| Workpiece side body angle (BAWS) (°) | 30 |
| Workpiece side connection count (CCONWS) | 2 |
