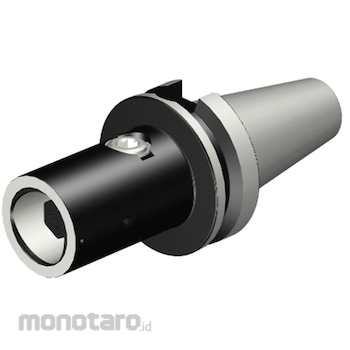

Sandvik BIG-PLUS MAS-BT to Coromant Capto Adaptor With Quick Change
#Grup produk P107421661
Spesifikasi
| Coolant entry style code (CNSC) | 7: Decentral Over Flange and Axial |
|---|---|
| Coolant exit style code (CXSC) | 1: Axial Concentric Exit |
| Coolant Pressure (CP) (bar) | 80 |
| Connection diameter (DCON) (mm) | 63 |
| Functional length (LF) (mm) | 135 |
| Adaptive Interface Machine Direction (ADINTMS) | BIG+/MAS-BT403 -AD/B Central/Flange Coolant - BT50 |
| Adaptive Interface Workpiece Direction (ADINTWS) | Coromant Capto (Segment Clamping) -Size C6 |
| Balanced by design (BBD) | True |
| Body diameter (BD1) (mm) | 63 |
| Body diameter (BD2) (mm) | 135 |
| Body length (LB1) (mm) | 96 |
| Body length (LB2) (mm) | 135 |
| Body material code (BMC) | Steel |
| Connection Retention Knob Thread Size (CRKS) | M24 |
| Damping property (DPC) | False |
| Data chip provision (DCP) | False |
| Functional diameter (DFC) (mm) | 44 | 69.85 |
| Torque (N m) | 90 |
