NKC-YNL-22SM Steel/200-20SM
Simple and secure push-to-connect type
For low pressure, wide applications single valve type

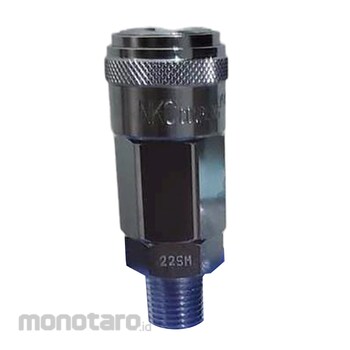

Yoshida YNL Series Coupler Socket (Male Thread)
#Grup produk P107363491
Spesifikasi
| Dimensions Dmax. (mm) | 25 |
|---|---|
| Material | Steel SC (Chromate plated) |
| Applicable Fluid | Air |
| Connection Method | Male screw (M) |
| Maximum Working Pressure (MPa) | 2 |
| O-Ring Materials | Nitrile rubber (NBR) |
| Working Pressure (MPa) | 1.5 |
| Working Temperature Range (°C) | -20 to +80 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
- Image on this page only as Representative Image. It will follow the description and model number.- Please confirm product details on Attribute Information then place an order.
Feature
- As well as NL series, the shut-off valve built into the socket opens when the plug is inserted and closes when the plug is removed. Therefore, it is not necessary to operate the main valve when inserting or removing the plug.- Just push the pIlug into the socket for simple and secure connection. This reduces connection time and improves efficiency.
- Use YNL series socket and NL series plug together.
- Available only with steel body. Not suitable for water.
- A variety of models are available. You can select the best model to suit your specific operating conditions and applications. For example, various pipe and hose connections are available for pneumatic machinery
Use
Pneumatic tool, pneumatic piping, pneumatic machineryUlasan Produk
