The directional control valve series D1VW in NG06 (CETOP 03 / NFPA D03) provides high functional limits up to 80 l/min in combination with a very low, energy-saving pressure drop due to optimized flow passages. The maximum pressure is 350 bar.
A wide variety of spools and options allows to design an unlimited number of hydraulic circuits. The D1VW is available with a soft shift option for smooth operation. An additional orifice in the solenoid anchor dampens the shifting time.
The D1VW*EE with explosion proof solenoids is based on the standard D1VW series. It is not only ATEX certified (explosion proof class is Ex e mb II T4 Gb for use in zone 1 and 2) but also equipped with IECEx compliant solenoids which are certified in accordance with IECEx standard for equipment class 2 G. All explosion proof solenoids are DC design. The valves for AC operate with integrated rectifier.
Markets:
- Industrial
Applications:
- Suitable for general hydraulic applications

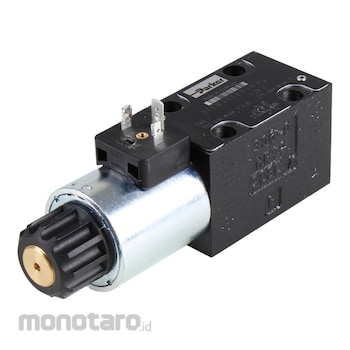

Parker Hydraulic Directional Control Valve
#Grup produk P107355623
Spesifikasi
| Function | 3-Way |
|---|---|
| Input Voltage (V) | 24 DC |
| Protection Class | IP65 |
| Actuation Type | Solenoid |
| Body Material | Cast iron |
| Connection Type | Connector as per EN 175301-803 |
| For Fluid Type | Hydraulic oil according to DIN 51524 |
| Maximum Flow Rate (L/minute) | 70 |
| Maximum Operating Pressure (psi) | 5000 |
| Maximum Operating Temperature | 60 |
| Minimum Operating Temperature (°C) | -25 |
| Mounting Position | Unrestricted, preferably horizontal |
| Mounting Type | Subplate mounting |
| Operation Type | Direct |
| Port Connection | NG06 / CETOP 03 |
| Product Series | Directional control valve |
| Seal Material | NBR |
| Solenoid Option | Standard |
| Spool Code | 020 |
| Spool Position | 2 positions, spring offset in position b, operated in position a |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Compact, proven design that represents our long-term experience in hydraulics- Wide range of spools - fits all hydraulic systems
- Shortest lead time - no warehousing necessary
- Optional soft shift option - for smooth operation
- Optional manual override
- Optional ex proof version
