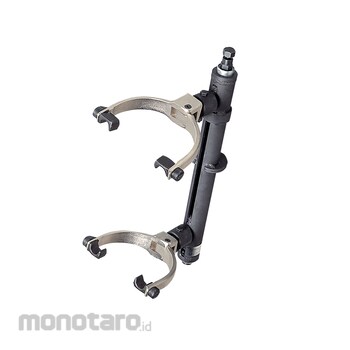

KYOTO TOOL (KTC) Strut Spring Compressor

-It is a special tool for attaching and detaching strut-type coil springs used in automobile suspensions.
-If an abnormal load is applied to the spring compressor during work, the breakage mechanism inside the drive provided in the center screw bolt section will break.
-The center screw bolt is built into the main body so that the threaded part is protected.
-The main unit is a vertical pipe type, which is compact and easy to use, increasing work efficiency.
-Applicable coil spring: wire diameter 18mm or less, outer diameter 90-170mm (standard arm), 135-220mm (large arm), effective number of turns 2 or more, spring gap 20mm or more *
Large arm is optional . , standard arm
AS10-2 , and large arm AS10-3 are set as spare parts.
