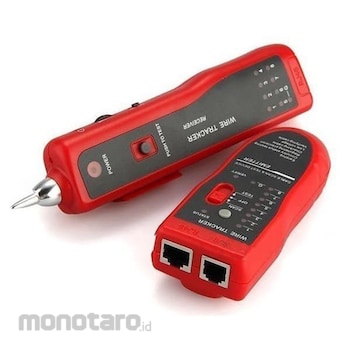

Wire Tracker NF-801
Wire Tracker NF-801 is a MUST item for telephone and LAN installers. With Wire Tracker NF-801 you can easily find target wire in a bunch of cables on net bar or on router. Indicator beeper has volume control, and included earphone is handy when working in noisy environment. Wire Tracker NF-801 can also work as a cable tester. It can test continuity of RJ11 and RJ45 wires. Two 9V batteries and carry case are included.
Package Contents :
1x NF801B Wire Tracker
1x Earphone
1x 6" RJ11 to RJ11 Jumper
1x 6" RJ45 to RJ45 Jumper
2x DC9V Battery
1x Carry case
NOYAFA Wire Tracker
#Grup produk P107252733
Spesifikasi
| Supported Cables | UTP / STP RJ45 / RJ11 / Metal Cable |
|---|---|
| Supported Test | Shielded and Unshielded RJ45 (8P8C) |
| Tone Frequency (Hz) | 200 |
| Max. Working Current (mA) | less than 10 |
| Volume Regulate Function | Audio Volume Level control |
| Battery Type | DC9.0V (NEDA 1604/6F22) x1pc |
| Dimensions (LxWxD) (mm) | 150x37x20 |
| Earjack | 1 |
| LED Light Display | Wiremap, tone, tracing |
| Max. Signal Voltage (V) | 8 |
| Maximum Distance of Transmission (km) | up to 2 |
| Receiver Battery Type | DC9.0V (NEDA 1604/6F22) x1pc |
| Receiver Dimensions (LxWxD) (mm) | 122x45x23 |
| Receiver Frequency (kHz) | 200 |
| Receiver Max. Working Current (mA) | less than 30 |
| Tone Mode | 2 tone, adjustable |
| Voltage Protection (V) | AC 60/DC 42 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Quickly trace and identify cables among lots of unknown cables.- Check continuity of Lan cables.
- Track the cables or wires, and diagnose the breakage.
- Visible indication: pin-to-pin cable map for individual cable (not by pairs).
- Low Voltage alarm function.
- Earphones permit use in noisy environments.
- LED light assists use in dark corners.
