POE Checker NF-488 can be used to test the information of the standard PoE device, such as af\at standard, power supply voltage, power supply polarity, and crossover mode. It also can be used to check the short circuit, crossover and open circuit status in the network cable with the far end. Also, can be used to test the power consumed by DC appliances.
Package Content :
1x Emitter
1x Remote Unit
3x AAA Batteries
1x Network Cable
1x User Manual
1x Carry case

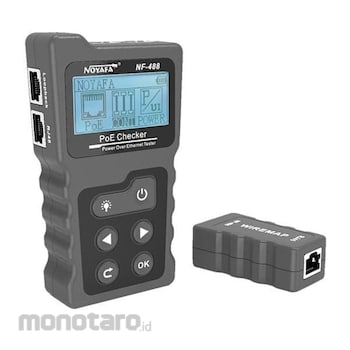

NOYAFA POE Checker
#Grup produk P107252690
Spesifikasi
| Indicator | LCD 128x64mm, with backlight |
|---|---|
| Cable Type | CAT5, CAT6 |
| Check UTP/STP Cable | Yes |
| Cable Short Indicate | Yes |
| Max. Testing Range (m) | 600 |
| Wire Mapping | Emitter + Remote emitter + Switch/router |
| Current Test Range (A) | 0-3 |
| PoE Output Interface | Yes |
| PoE Standard Identify | 802.3af/at (standard / non-standard) |
| PoE Test Range (V) | DC5-60, POE switch |
| PoE Test Range Power (W) | 0-18 |
| Power Test Range (W) | 0-180 |
| Remote Input Voltage Protection (V) | DC48 |
| Remote Port | RJ45 |
| Voltage Test Range (V) | DC 0-60 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Test the information of the standard PoE device, such as af\at standard, power supply voltage, power supply polarity and mode.- Identify the supply voltage, power supply polarity and mode of non-standard PoE devices.
- Check the short circuit, crossover and open circuit status in the network cable.
- Test the current, voltage and power consumed by DC appliances.
- The loop-back test function of the switch.
