Cable Tester Multi Purpose NF-388

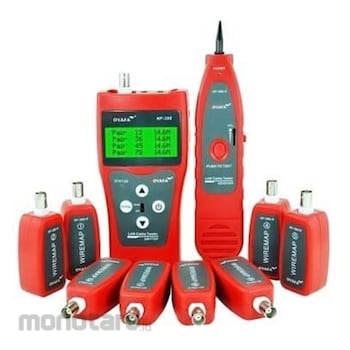

Cable Tester Multi Purpose NF-388 is a multipurpose network cable test & check the line instrument is the latest development of a more novel features of cable test and check the line instrument. The equipment consists of a main tester (NF-308), a receiver (NF-838-R) and the remote identifier(8pcs) .
It has three mainly functions - line-tracking, line-alignment and Line state test, with a shortcut, accurate characteristics, communication lines, integrated wiring, line weak systems installation, maintenance, a useful tool set for engineering and technical personnel.
Widely used in the telephone system, computer network and other metal wire lines and other fields.
NOYAFA Cable Tester Multipurpose
#Grup produk P107252672
Spesifikasi
| Indicator | LCD 53x25mm with backlight |
|---|---|
| Tone Frequency (Hz) | 225 |
| Max. Working Current (mA) | Less than 70 |
| Tone Mode | 2 Tone adjustable |
| Battery Type | DC9.0V (NEDA 1604/6F22 DC9V) x1pc |
| Cable Map Indication | LCD ( #1 - #8 ) |
| Compatible Connectors | RJ11, RJ45, BNC, USB |
| Dimensions (LxWxD) (mm) | 185x80x32 |
| Earphone Jack | 1 |
| Function and Fault LCD Display | LCD display ( wiremap, Tone, short, , No adapter, Low battery ) |
| LED illumination | 2 |
| Max. Signal Voltage (V) | 15 |
| Maximum Distance of Cable Map (km) | 1 |
| Maximum Distance of Transmission (km) | 2 |
| Receiver Battery Type | DC9.0V (NEDA 1604/6F22 DC9V) x1pc |
| Receiver Dimensions (LxWxD) (mm) | 218x46x29 |
| Receiver Frequency (kHz) | 225 |
| Receiver Max. Working Current (mA) | less than 70 |
| Shielded Indication | LCD ( #9) |
| Voltage Protection (V) | AC 60, DC 42 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Single cable connectivity testing can be carried out.- Wiring / connection error positioning.
- Measuring the cable length, and determine a distance from the open, short.
- Dynamic calibration function of the cable length, the length measurement accuracy of up to 97%.
- Easy to use, the large screen display of the test results at a glance.
- Portable, long battery life (standby 50 hours).
- Automatically delay shutdown and backlit display.
- Whether the plug in the remote identification can be carried out measurements of length and pairing.
- Cable positioning, eight remote passive test jacks (ID 1D1-ID8).
- Remote single-frequency identification tool prompts.
- SCM software watchdog design and reliable operation.
- The self-test function, can automatically compensate for changes in battery power, the impact of changes in ambient temperature.
- 5E, 6E, telephone line, coaxial cable, USB lines directly looking for a variety of cable.
- Can detect 5E, 6E, coaxial cable and telephone wiring fault lines, including : open circuit, short circuit, jumper, reverse, and string around.
