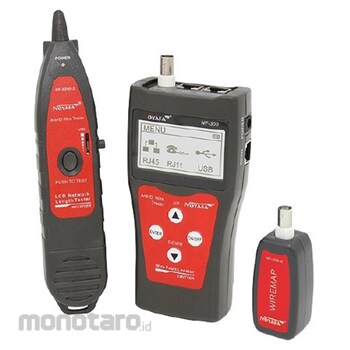

Network Coax Cable Tester Digital NF-300
NF-300 multipurpose coaxial cctv, network cable test & inspection instrument is composed of tester, receiver and remote identifier.
Benefits :
- Enables cables to be located even when totally concealed
- Memory and storage function
- LCD Screen shows test result clearly
Package Content :
1x NF-300 Transmitter
1x NF-300 Receiver
1x NF-300 Remote unit
1x Telephone line adapter
1x Network cable adapter
1x Cable clips
1x User manual
1x Earphone
NOYAFA Cable Tester Digital Network Coax
#Grup produk P107252654
Spesifikasi
| LCD Screen (mm) | 53x25 |
|---|---|
| Tone Frequency (Hz) | 225 |
| Max. Distance of Tracing Cable (m) | Electrified wire (3000), Non-electrified wire (2000) |
| Maximum Distance of Cable Map (km) | 2.5 |
| Max. Distance Cable Length (m) | 1000 |
| Trace Cable Connected to Switch | anti-jamming |
| Battery Type | DC9.0V (NEDA 1604/6F22 DC9V) x1pc |
| Cable Map Indication | LCD ( #1 - #8 ) |
| Compatible with Connectors | RJ11, RJ45, BNC, USB |
| Dimensions (LxWxD) (mm) | 185x80x32 |
| Earphone Jack | 1 |
| LED Light Display | Wiremap, tone, tracing |
| LED illumination | 2 |
| Receiver Battery Type | DC9.0V (NEDA 1604/6F22 DC9V) x1pc |
| Receiver Dimensions (LxWxD) (mm) | 218x46x29 |
| Receiver Frequency (kHz) | 225 |
| Receiver Max. Working Current (mA) | less than 70 |
| Shielded Indication | LCD ( #9) |
| Tone Mode | 2 tone, adjustable |
| Voltage Protection (V) | AC 60, DC 42 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Trace and locate RJ45 (STP / 4-core) , RJ11,USB,BNC cables- Anti-jamming, capable of working on the exchanger and PC startup.
- Measure cable length for RJ45, BNC Cable.
- Check open, short, cross, crosstalk for RJ11, RJ45, BNC cable.
- Locate short and breakage point accurately.
- Memory and storage function.
- LCD Screen shows test result clearly.
