Smooth speed control is possible.
Lighter weight and lower cost by adopting Touch Connector Five.
Compact design (mini series) ideal for small diameter cylinders.
Easily adjust speed control in the low flow range (mini series).
Flame-retardant PBT resin is used as standard to prevent accidents in a welding environment.

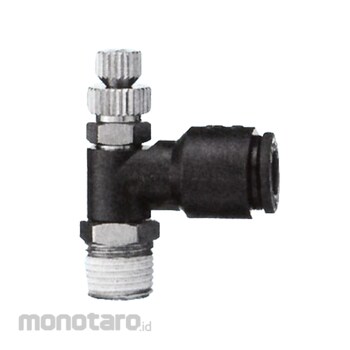

CHIYODA TSUSHO Touch Connector Five Mini Speed Controller A
#Grup produk P107128676
Spesifikasi
| Color Body | Black |
|---|---|
| Connection Thread T | R1/8 |
| Dimension B2 (mm) | 36 |
| Direction of Control | Meter out |
| Dimension A (mm) | 22.3 |
| Dimension B1 (mm) | 33.6 |
| Dimension C (mm) | phi 13 |
| Dimension E (mm) | 17.5 |
| Dimension L (mm) | 13.5 |
| Fluid | Compressed air |
| Material (Main Unit) | Brass / resin |
| Maximum Operating Pressure (MPa) | 0.05-0.7 |
| Operating Temperature Range (°C) | -5 to +60 |
| Suitable Tube Outer Diameter D (mm) | 6 |
| Width Across Flats H (mm) | 10 |
