The SW504P is a 5-port 100Mbps POE powered switch.1-4 ports can detect connected devices automaticallyand deliver power &data to all IEEE802.3af/at compliantPOE powered deviceds through one Ethernet cable.In addition, the SW504P supports extended mode andcan support long-distance transmission up to 250 metersafter it is turned on.It is ideal for outdoor surveillance and small APnetwork deployments.
Package Contents:
SW504P Desktop Switch x1, Power Adapter, Quick Installation Guide x1

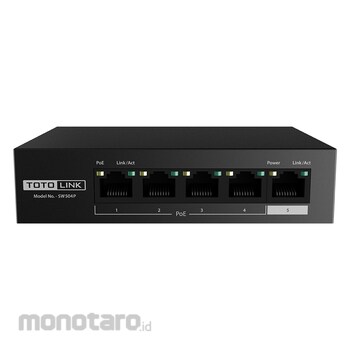

Totolink 5-Port 10/100Mbps POE Powered Switch
#Grup produk P107047885
Spesifikasi
| Mac Address Table | 1K |
|---|---|
| Backup Bandwidth (Gbps) | 1 |
| Button | 1x Extender Button |
| Dimensions (LxWxH) (mm) | 118x85x28 |
| Interface | 4x 10/100Base-Tx ports(Data/Power), 1x 10/100Base-Tx port(Data) |
| LED Indicator | 5x Link/Act per device, 4x PoE per device, 1x Power per device |
| PoE Supply Management | Port 1 to Port 4 support IEEE802.3at/af PoE standard |
| PoE Through Pin | 1 2 4 5 +，3 6 7 8 |
| Port Lightning Protection (KV) | 6 |
| Power Consumption (W) | in full configuration: <63, PoE Max Power Supply: 58 |
| Power Input (V/A) | AC: 100-240, DC: 48/1 & 51/1.17 (Power adapter) |
| Standard & Protocol | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
5 10/100Mbps Ethernet ports, 1-4 ports IEEE 802.3af/at standard POE.Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode.Mini iron box design supports desktop placement or wall mount.1K entry MAC address table and automatic address learning.6KV Port Lightning Protection.One-key Extension Mode, Maximum support 250 meters transmission distance.Ulasan Produk
