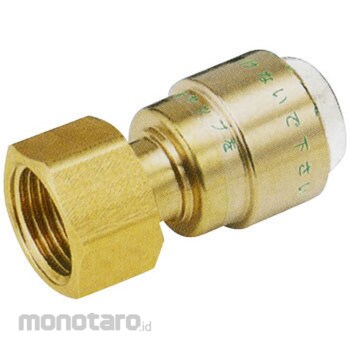

Bridgestone Pushlock II Union Female Adapter
#Grup produk P107027890
Spesifikasi
| Material | Body / Gun (CAC406C (Bronze)), Cap nut / Brass (C3604) |
|---|---|
| Shape | Straight |
| Size | KAU16J |
| Thread Diameter M | G3/4 |
| Type | PVC / resin pipe fittings |
| Dimension A (mm) | 29.0 |
| Dimension L1 (mm) | 59.5 |
| Dimension L2 (mm) | 16.0 |
| Dimensions d (mm) | Φ33.0 |
| Nominal Diameter A | 16 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Tighten with proper torque to prevent packing damage. The standard tightening torque for non-asbestos packing should be as follows. When performing an airtight test, make sure that the packing contains water to prevent seepage leakage. G1 / 2: 25Nm, G3 / 4: 45Nm, G1: 70Nm (when using the EPDM gasket is recommended 4 ~ 6Nm)Ulasan Produk
