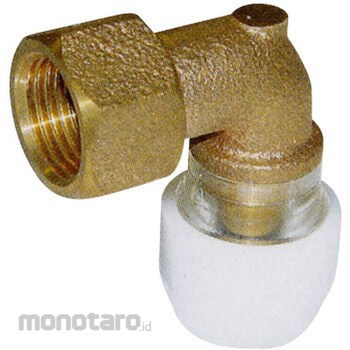

Bridgestone Faucet Elbow without Push Master Seat
#Grup produk P107019518
Spesifikasi
| Material | CAC406 (bronze) lead-free treatment, etc. |
|---|---|
| Shape | Elbow |
| Size | NAE13J3 |
| Thread Diameter M | Rc1/2 |
| Type | PVC / resin pipe fittings |
| Dimension E (mm) | 47.9 |
| Dimension F (mm) | 26.0 |
| Dimension L1 (mm) | 13.0 |
| Dimension L2 (mm) | 39.0 |
| Dimensions d (mm) | Φ30.4 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Tighten with proper torque to prevent packing damage. The standard tightening torque for non-asbestos packing should be as follows. When performing an airtight test, use water after filling the packing to prevent leakage. G1 / 2: 25Nm, G3 / 4: 45Nm, G1: 70Nm When using EPDM packing, 4 to 6Nm is recommended.Ulasan Produk
