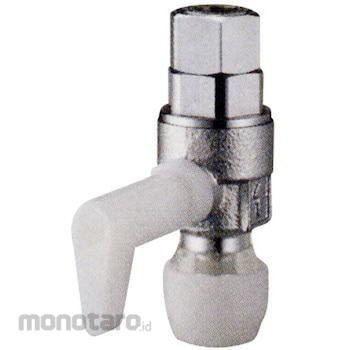

Bridgestone Ball Valve Union Type with Push Master Check Valve
#Grup produk P107018476
Spesifikasi
| Material | Gunmetal (CAC406 (bronze)) |
|---|---|
| Shape | Straight |
| Suitable fluid | Water |
| Surface Treatment | Ni-Cr plating treatment |
| Type | Ball valve |
| Handle Type | Elongate |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This is a dedicated anti-backflow fitting that is installed on the water flow side of a water heater.
Warning
Tighten with proper torque to prevent packing damage. The standard tightening torque for non-asbestos packing should be as follows. When performing an airtight test, make sure that the packing contains water to prevent seepage leakage. G1 / 2: 25 Nm, G3 / 4: 45 Nm (4 to 6 Nm is recommended when using EPDM packing) If the supplied packing is different from the recommended specifications in your area, use an appropriate product.
Do not perform a water pressure test under conditions where water pressure is applied in the non-return direction. It may cause damage to the check valve.
Apply proper heat insulation in areas where there is a risk of freezing. Check valve may be damaged by freezing.
Use
It is a backflow prevention joint dedicated to mounting on the water flow side of the water heaterUlasan Produk
