FAG Tapered Roller Bearing Set
#Grup produk P107005630
Spesifikasi
| Limiting Speed nG (rpm) | 1440 |
|---|---|
| Basic Dynamic Load Rating, Radial (Cr) (N) | 3150000 |
| Basic Static Load Rating, Radial (C0r) (N) | 6100000 |
| Fatigue Load Limit, Radial (Cur) (N) | 710000 |
| Maximum Diameter of Housing Shoulder (Da max) (mm) | 462 |
| Bore Diameter (D) (mm) | 320 |
| Dynamic Axial Load Factor (Y1) | 1.47 |
| Dynamic Axial Load Factor (Y2) | 2.19 |
| Inner Ring Total Width (2B) (mm) | 200 |
| Maximum Diameter of Shaft Shoulder (da max) (mm) | 350 |
| Maximum Operating Temperature (Tmax) (°C) | 200 |
| Minimum Axial Space (Ca) (mm) | 15 |
| Minimum Chamfer Dimension of Outer Ring Back Face (r3, 4 min) (mm) | 4 |
| Minimum Operating Temperature (Tmin) (°C) | -30 |
| Outer Ring Total Width (2T) (mm) | 200 |
| Outside Diameter D (mm) | 480 |
| Static Axial Load Factor (Y0) | 1.44 |
| Thermal Speed Rating (nϑr) (1/minute) | 560 |
| Width of Spacer (A) (mm) | 52 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

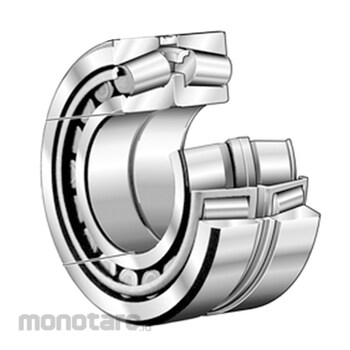

Tapered roller bearing set 320..-DF, X-arrangement
