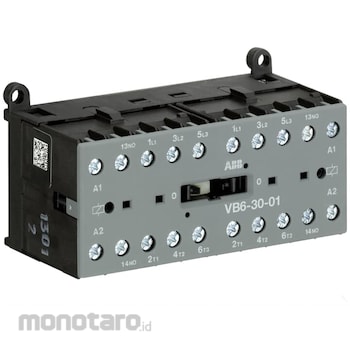

VB6-30-01-01 Mini Rev.Contactor 24V 40-450Hz
The VB6-30-01 mini reversing contactor is a compact 3 pole contactor with 1 auxiliary contact, screw terminals and normal mechanical interlock. They are ideally suited for applications where reliability is a must and space is at a premium. Mini reversing contactors are used in residential buldings, commercial buildings and industrial applications for the control of three-phase motor loads up to 4 kW (AC-3). Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.
ABB Mini Reversing Contactor
#Grup produk P106983191
Spesifikasi
| Connecting Capacity Control Circuit (mm²) | Flexible with Ferrule 1/2x 1-2.5, Flexible with Insulated Ferrule 1/2x 1-2.5, Flexible 1/2x 1-2.5, Rigid 1/2x 1-4 |
|---|---|
| Connecting Capacity Auxiliary Circuit (mm²) | Flexible with Ferrule 1/2x1-2.5, Flexible with Insulated Ferrule 1/2x1-2.5, Flexible 1/2x1-2.5, Rigid 1/2x1-4 |
| Connecting Capacity Main Circuit (mm²) | Flexible with Ferrule 1/2x 1-2.5, Flexible with Insulated Ferrule 1/2x 1-2.5, Flexible 1/2x 1-2.5, Rigid 1/2x 1-4 |
| Conventional Free-air Thermal Current (A) | Min Circuit, 20 |
| Maximum Electrical Switching Frequency (cycles/hour) | (AC-1) 300, (AC-15) 600, (AC-3) 600, (DC-1) 600, (DC-13) 600, (DC-3) 600 |
| Mechanical Durability (cycle) | 10000000 |
| Minimum Switching Capacity | Auxiliary Circuit 17 V, Auxiliary Circuit 5 mA |
| Mounting on DIN Rail (mm) | TH35-15 (35x15 Mounting Rail) acc. to IEC 60715, TH35-7.5 (35x7.5 Mounting Rail) acc. to IEC 60715 |
| Number of Main Contacts NC | 0 |
| Number of Poles | 3 |
| Pollution Degree | 3 |
| Product Depth/Length (mm) | 46.7 |
| Product Height (mm) | 57.5 |
| Product Width (mm) | 96.2 |
