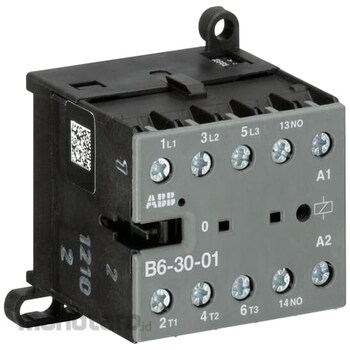

B6-30-01-01 Mini Contactor 24V 40-450Hz
The B6-30-01 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 4 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.
ABB Kontaktor Mini
#Grup produk P106983137
Spesifikasi
| Connecting Capacity Control Circuit (mm²) | Flexible with Ferrule 1/2x 1-2.5, Flexible with Insulated Ferrule 1/2x 1-2.5, Flexible 1/2x 1-2.5, Rigid 1/2x 1-4 |
|---|---|
| Connecting Capacity Main Circuit (mm²) | Flexible with Ferrule 1/2x 1-2.5, Flexible with Insulated Ferrule 1/2x 1-2.5, Flexible 1/2x 1-2.5, Rigid 1/2x 1-4 |
| Conventional Free-air Thermal Current (A) | Min Circuit, 20 |
| Mechanical Durability (cycle) | 10000000 |
| Mounting on DIN Rail (mm) | TH35-15 (35x15 Mounting Rail) acc. to IEC 60715, TH35-7.5 (35x7.5 Mounting Rail) acc. to IEC 60715 |
| Product Depth/Length (mm) | 46.7 |
| Product Height (mm) | 57.5 |
| Product Width (mm) | 52.5 |
