Versatile and rugged tool for applications with high currents
Confidently take reliable readings with the True RMS, Fluke 353 digital clamp meter; the tools of choice for high current clamp-on amp meter measurement up to 2000 A. The extra-wide jaw easily clamps around large conductors, typically found in high-current applications. The extra rugged design and CAT IV 600 V, CAT III 1000 V ratings add an extra element of user protection when taking high-powered measurements. Accurate peak measurements can be taken using the in-rush current mode, ideal for motors and inductive loads.

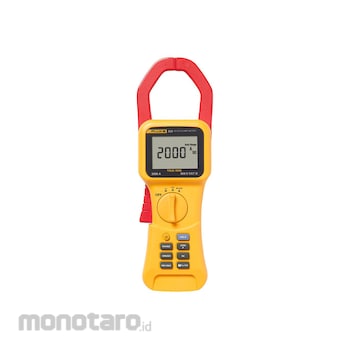

FLUKE True RMS Clamp Meter
#Grup produk P106958849
Sebelum PPN:
Rp26.999.900 - Rp29.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Battery Type | Six 1.5 V AA NEDA 15 A or IEC LR6 |
|---|---|
| Battery Life (hour) | 100 (with typical usage, backlight off) |
| Test Leads (V) | Rated to 1000 |
| Jaw Size (mm) | 58 |
| Dimensions (LxWxD) (mm) | 300x98x52 |
| Safety Rating | IEC 61010-2-032, 600 V CAT IV, 1000 V CAT III |
| Drop Test Requirement (m) | 1 |
| IP Rating | IP 42 (indoor use only) |
| Operating Altitude (m) | 2000 |
| Operating Humidity (%) | 0 to 95 (non-condensing) |
| Operating Temperature (°C) | 0 to +50 |
| Storage Altitude (m) | 10000 |
| Storage Temperature (°C) | -20 to +60 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Reliably handle a wide range of high-current applications with 2000 A AC + DC true-rms, 1400 A ac, and 2000 A DC- The large 58 mm (2.3 in) jaw capacity is suitable for large or multiple conductors
- CAT IV 600 V, CAT III 1000 V rating for added user protection
- In-rush current measurement captures 'power-on' surge current with accuracy and repeatability
- Accurately measure frequency up to 1 kHz for optimum troubleshooting
- Quickly analyze readings using the MIN, MAX, and AVG functions
- A large backlit display allows for easy visibility in low-lit areas
- Use the display hold feature to capture readings even when the display cannot be viewed
- Use the low-pass filter to smooth out noisy loads and stabilize readings
