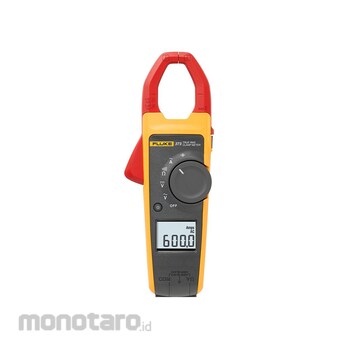

Fluke 373 True RMS AC Clamp Meter does the job for any AC-only current measurement application
Fluke 373 True-RMS AC Clamp Meter is a great choice for AC-only current measurement situations. Featuring True RMS AC voltage and current measurements you can measure AC current to 600 A and AC voltage to 600V. The 373 also measures DC voltage to 600 V and resistance to 6000 Ω.To make it even easier to use, the large, easy-to-read backlit display provides better visibility in dimly lit conditions. And the 373 automatically sets the correct measurement range based on the voltage present when you power up, so you do not need to move the switch while taking a measurement. When you put it all together, you'll find the Fluke 373 offers everything you need, plus a little more.
Other useful capabilities:
- Provides True-RMS voltage and current measurements to accurately measure non-linear signals
- Automatically selects a measurement range based on voltage present so you don't need to change the switch positions while taking a measurement
- Presents readings on a large, easy-to-read backlit display
- Features CAT IV 300 V, CAT III 600 V safety ratings
- Comes with a soft carrying case
- Runs on two AA alkaline batteries
FLUKE True RMS AC Clamp Meter
#Grup produk P106958803
Spesifikasi
| Battery Type | 2 AA, NEDA 15A, IEC LR6 |
|---|---|
| Operating Temperature (°C) | -10 to +50 |
| Storage Temperature (°C) | -40 to +60 |
| Operating Humidity (%) | Non-condensing (<10 °C); 90 relative humidity (10 °C to 30 °C); 75 relative humidity (30 °C to 40 °C); 45 relative humidity (40 °C to 50 °C) |
| Operating Altitude (m) | 3000 |
| AC Voltage Range (V) | 600 |
| AC Voltage Resolution (V) | 0.1 |
| Capacitance Range (μF) | 10.0-100.0 / 1000 |
| Capacitance Resolution (μF) | 0.1 /1 |
| DC Voltage Range (V) | 600 |
| DC Voltage Resolution (V) | 0.1 |
| Dimensions (mm) | 232x85x45 |
| Resistance Range (ohm) | 600.0/6000 |
| Resistance Resolution (ohm) | 0.1 /1 |
| Safety Compliance | ANSI/ISA S82.02.01:2004; CAN/CSA-C22.2 No. 61010-1-04; IEC/EN 61010-1:2001, 600V CAT III, 300V CAT IV; Pollution Degree 2; EN/IEC 61010-2-32:2002; EN/IEC 61010-031:2002/A1:2008 |
| Storage Altitude (m) | 12000 |
| Temperature coefficient | Add 0.1 x specified accuracy for each degree C above 28 °C or below 18 °C |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- A top performing True-RMS current clamp for AC-only current measurements to 600 A- Measures AC and DC voltage to 600 V
- Measures resistance to 6000 Ω with continuity detection
- Offers state of the art signal processing to provide stable readings even in noisy electrical environments
