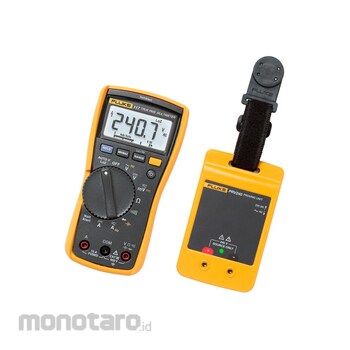

The Fluke 117 multimeter and PRV240 Proving Unit Kit combines a general-purpose electrician's digital multimeter with a portable, pocket-sized, battery-powered voltage source that provides a safe method to verify that your electrical test tool is operating properly before you conduct any live tests.
Fluke 117 Electrician's Multimeter
The Fluke 117 Electricians Multimeter includes integrated non-contact voltage detection, AutoVolt and LoZ functions for faster, more accurate readings. It is a compact true-rms meter for demanding applications like commercial buildings, hospitals, and schools.
Fluke 117 key functions
Integrated VoltAlert technology for fast, go/no go non-contact voltage detection. Features AutoVolt automatic ac/dc voltage selection
- Provides low input impedance to help prevent false readings due to ghost voltage
- Provides Min/Max/Average to record signal fluctuations
- CAT III 600 V safety rated
PRV240 Proving Unit
The Fluke PRV240 Proving Unit is a portable, pocket-sized, battery-powered voltage source. It is unique in that it sources stable ac and dc voltages for both LoZ and HiZ instruments.
PRV240 Proving Unit key functions
A single LED indicates functionality, making this unit a simple-to-use solution for complying with TBT verification of your test tool. Voltage is sourced through recessed contacts that are activated when test probes are inserted, preventing accidental contact.
- Includes TPak Magnetic Hanging Strap
- Long battery life—5,000 tests per set of four AA batteries
FLUKE Multimeter and Proving Unit Kit (Multitester)
#Grup produk P106957789
Spesifikasi
| Safety Rated | IEC 61010-1: Pollution Degree 2; IEC 61010-2-033: CAT III 600V |
|---|---|
| Display | Digital: 6000 counts, updates 4/sec |
| Bar Graph | 33 segments, updates 32 per second |
| Operating Temperature (°C) | -10 to +50 |
| Storage Temperature (°C) | -40 to +60 |
| AC Current Range/Resolution (μA) | 600.0 / 0.1 |
| AC Millivolt Range/Resolution (mV) | 600.0/0.1 (TrueRMS) |
| AC Volt Range/Resolution (V) | 6.000-600.00/0.001-0.1 (TrueRMS) |
| Battery Life (hour) | 400 typical, without backlight (FLK 117); 5000 (5-second duration) test cycles with >1 MΩ load, 300 tests minimum with >3 kΩ load (PRV240) |
| Battery Type | 9 volt Alkaline, IEC 6LR61 (FLK 117); 4 AA Alkaline batteries NEDA, 24 A IEC LR03 (PRV240) |
| Continuity Range/Resolution (ohm) | 600/1 |
| DC Current Range/Resolution (μA) | 600.0 / 0.1 |
| DC Millivolt Range/Resolution (mV) | 600.0/0.1 |
| DC Volt Range/Resolution (V) | 6.000-600.00/0.001-0.1 |
| Diode Test Range/Resolution (V) | 2.00 / 0.001 |
| Frequency Range/Resolution (Hz) | 99.99Hz-50.00kHz / 0.1Hz-0.001Hz |
| LED Power Indicator | Turns on when output voltage is present (PRV240) |
| Lo-Z Capacitance Range/Resolution (µF) | 0.001 to 500 |
| Maximum Voltage (V) | 600 (between any terminal and earth ground) |
| Size (mm) | 167x84x46 (FLK117); 117x74x28 (PRV240) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- True-rms electrician's digital multimeter with non-contact voltage detection, AutoVolt automatic ac/dc voltage selection- Reduces the risk of shock and arc flash by validating the functionality of test tools without placing yourself in a potentially hazardous electrical environment
