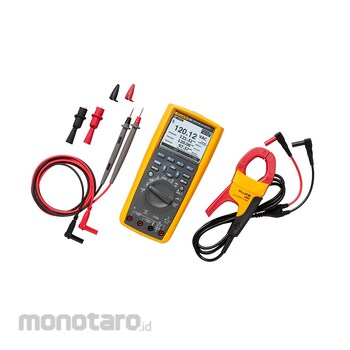

This combo kit is built around the Fluke 289, Fluke's next-gen high performance industrial logging multimeter, combined with the i400 AC current clamp. Together, they help solve complex problems in electronics, plant automation, power distribution, and electro-mechanical equipment. The kit includes special accessories to make you even more productive on the job and will save over 15% compared with the individually priced items. Plus, you'll be working with the most trusted tools in the world.
Fluke 289 DMM Features
- Provides the ability to log data and graphically
- TrendCapture graphically displays logged data session to quickly determine whether anomalies may have occurred.
- Review up 10,000 recorded events and logged readings with on-board TrendCapture
- Zoom on trend provides unprecedented ability to view and analyze TrendCapture data; zoom in up to 14 times.
- Low Pass filter for accurate voltage and frequency measurements at the same time on adjustable speed motor drives and other electrically noisy equipment.
- Includes premium test leads, alligator clips, and amp jack plugs
Fluke i400 AC Current Clamp Features
- Provides accurate current measurements up to 400 A ac without breaking electric circuits.
- Flexible, heat resistant test leads and alligator clips complete this high-performance kit.
- Soft non-slippery over mold handle prevents from accidental touching live wiring
- Max. conductor Ø 32 mm
1000V voltage detection range for wide range of applications use
- Measures up to 1000 V AC/DC voltage
- Measures up to 10 A AC/DC current
- Measure resistance up to 500 MΩ
- Measure frequency up to 1000 kHz max
Safety Features
- Rated for CAT III 1000 V for added protection
- Rated for CAT IV 600 V for added protection
- CE and CSA approved
FLUKE Industrial Multimeter Service Kit (Multitester)
#Grup produk P106957284
Spesifikasi
| Battery Type | 6 AA alkaline batteries, NEDA 15A IECLR6 |
|---|---|
| Battery Life (hour) | 100 minimum, 200 in logging mode |
| Temperature (°C) | Operating : -20°C to 55°C; Storage : -40°C to 60°C |
| Electromagnetic Compatibility | EMC EN61326–1 |
| Vibration | Random vibration per MIL-PRF-28800F Class 2 |
| Conductance (nS) | 50 |
| DC mV Resolution (μV) | 1 |
| Logging Memory | Up to 15000 readings |
| Maximum Conductor Diameter (mm) | 32 |
| Maximum Conductor Size (busbar) (mm) | 750 |
| Maximum Non-destructive Current (A) | 1000 |
| Maximum Voltage (V) | 1000 (between any terminal and earth ground) |
| Megaohm Range (MΩ) | Up to 500 |
| Nominal Current Range (A) | 400 (Fluke i400) |
| Output Cable Length (m) | 1.5 |
| Output Level (mA/A) | 1 |
| Shock (m) | 1 drop per IEC/EN 61010–1 3rd Edition |
| Size (HxWxL) (cm) | 22.2x10.2x6 |
| True-RMS AC Bandwidth (kHz) | 100 |
| Usable Frequency (Hz) | 5-20000 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- True-RMS accuracy with manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-Average recording give you the results you need.- Fluke-i400 AC 400A Current Clamp turns the 289 into a clamp meter.
- Safety rated CAT III 1000 V, CAT IV 600 V meter to get you home safely from the job.
