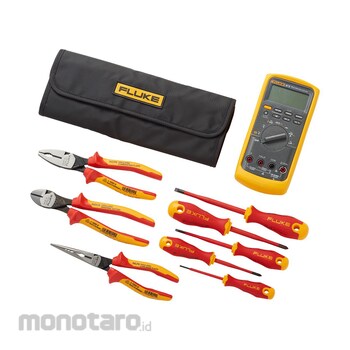

FLUKE Industrial Multimeter Plus Insulated Hand Tools Starter Kit (Multitester)
#Grup produk P106957248
Spesifikasi
Display | 6000 counts updates 4/Sec; 19999 counts in high–resolution mode |
---|---|
Analog Bar Graph | 32 segments, updates 40/sec |
Battery Type | Alkaline |
Battery Life (hour) | 400 typical, without backlight |
Size (mm) | 201x98x52 (with holster) (87V) |
Operating Temperature (°C) | -20 to +55 |
AC Current Range | 0.1μA to 10A |
AC Voltage Range | 0.1mV to 1000V |
Capacitance Range | 0.01nF to 9999μF |
DC Current Range | 0.1μA to 10A |
DC Voltage Range | 0.1mV to 1000V |
Frequency Range | 0.5Hz to 200kHz |
Humidity (without condensation) (%) | 0 - 90 (0°C - 35°C); 0 - 70 (35°C - 55°C) |
Maximum Duty Cycle (%) | 99.9 |
Operating Altitude (m) | 2000 |
Resistance Range | 0.1Ω to 50MΩ |
Storage Temperature (°C) | -40 to + 60 |
Pilih jenis produk yang diinginkan
Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
---|---|---|---|---|
Loading... |
Informasi Produk
Description
The Fluke 87V Industrial Multimeter combined with the insulated hand tools starter kit, the most often used screwdrivers, pliers and cutters.
The 87V provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment even in loud, high energy, and high altitude locations. A low pass filter supports accurate frequency measurements on VFDs and captures intermittents as fast 250 µS.
The insulated hand tools starter kit has three sizes of slot screwdrivers. #1 and #2 Phillips screwdrivers. Long nose pliers, heavy duty diagonal cutters and heavy duty lineman combination pliers. All made from hardened chromium-molybdenum-vanadium (CMV) steel. All certified to 1000 volts AC and 1500V DC.
Fluke 87V Industrial Multimeter
- Rugged, high accuracy industrial multimeter to measure current, voltage and frequency on complex variable frequency drive (VFD) signals
- Offers true-RMS AC voltage and current for measuring non-linear signals
- Captures intermittents as short as 250 µS
- Safety rated CAT III 1000 V, CAT IV 600 V
- Includes a built-in thermometer and temperature probe
Slotted screwdrivers
- Three different bladeforms
- Three handle lengths
Phillips screwdrivers
- #1 and #2 tips
- Two handle lengths
Long nose pliers with side cutter and gripping zones
- Unique milled wave pattern gripping zones
- 4 gripping points for pulling round objects with superior grip that won't slip
- Straight, half-round, long and slim knurled jaws, specially profiled
- Side cutting edge for wire cutting
Heavy duty, high leverage diagonal cutter
- Cuts hard materials including steel and piano wire
- Power joint and precision cutting edges
Heavy Duty Combination Pliers
- Secure hold by aggressive serrated jaws and 4-point gripping hole
- Slim shape for better access to wires in tight spaces
- Powerful gripping jaw, yet 20% lighter weight than other designs
The 87V provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment even in loud, high energy, and high altitude locations. A low pass filter supports accurate frequency measurements on VFDs and captures intermittents as fast 250 µS.
The insulated hand tools starter kit has three sizes of slot screwdrivers. #1 and #2 Phillips screwdrivers. Long nose pliers, heavy duty diagonal cutters and heavy duty lineman combination pliers. All made from hardened chromium-molybdenum-vanadium (CMV) steel. All certified to 1000 volts AC and 1500V DC.
Fluke 87V Industrial Multimeter
- Rugged, high accuracy industrial multimeter to measure current, voltage and frequency on complex variable frequency drive (VFD) signals
- Offers true-RMS AC voltage and current for measuring non-linear signals
- Captures intermittents as short as 250 µS
- Safety rated CAT III 1000 V, CAT IV 600 V
- Includes a built-in thermometer and temperature probe
Slotted screwdrivers
- Three different bladeforms
- Three handle lengths
Phillips screwdrivers
- #1 and #2 tips
- Two handle lengths
Long nose pliers with side cutter and gripping zones
- Unique milled wave pattern gripping zones
- 4 gripping points for pulling round objects with superior grip that won't slip
- Straight, half-round, long and slim knurled jaws, specially profiled
- Side cutting edge for wire cutting
Heavy duty, high leverage diagonal cutter
- Cuts hard materials including steel and piano wire
- Power joint and precision cutting edges
Heavy Duty Combination Pliers
- Secure hold by aggressive serrated jaws and 4-point gripping hole
- Slim shape for better access to wires in tight spaces
- Powerful gripping jaw, yet 20% lighter weight than other designs
Feature
- 87V: Identify complex signal problems fast- 87V: measure current, voltage and frequency on complex variables
- Insulated tools: certified to 1000 V AC, 1500 V DC
- Insulated tools: ergonomic 8 piece set, with roll-up pouch
